Product Description

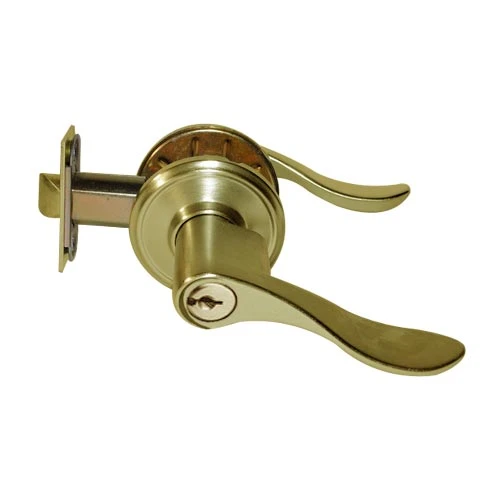

CL11-LC-04-LHR Arrow Cylindrical Lock C Series Entrance with Lunar Lever Design in Satin Brass Finish
The Arrow CL11-LC-04-LHR Entrance function lock is designed for light commercial applications. The return of the Comet brings with it the exceptional value and quality required to meet the demands of the single and multi-family housing markets. The C series are certified to BHMA A156.2, Series 4000, Grade 2. Combining a variety of lever designs, convenient installation and the Arrow benchmark for dependability, the C Series is perfect in most any space.
Entrance: Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever/lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
Features and Benefits:
- Satin Brass finish
- Strike: 1-3/4" x 2-1/4", 1-1/4" lip, square corner
- Latch bolt: 1/2" throw, 1-1/8" front
- Backset: 2-3/4" or 2-3/8" Adjustable backset
- Includes 3 faceplates
- Lunar lever trim design
- Construction: Tubular chassis
- Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
- Handing: Left-handed
- Cylinder: 6-pin, solid brass, 2 brass keys standard
