Product Description
SL24-83-CL-HD600 Select SL24 Concealed Geared Continuous Hinge — Heavy Duty 600 lb, 83" Length, Clear Aluminum
Butt hinges on a high-frequency commercial door wear out, sag, and squeal within a few years — the pin and knuckle design just isn't built for hundreds of cycles a day. The Select SL24 replaces the full-length butt hinge run with a concealed geared continuous hinge: no exposed pins, no mortise prep beyond the standard hinge line, and a load rating that keeps up with heavy doors and heavy traffic.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | SL24 | Select geared, concealed-leaf continuous hinge |
| Length | 83 | 83" hinge, standard for a 7'0" nominal door height |
| Finish | CL | Clear anodized aluminum |
| Load Rating | HD600 | Heavy Duty — rated for high-frequency doors up to 600 lbs |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | SL24-83-CL-HD600 |
| Series | SL24 |
| Length | 83" |
| Finish | Clear Anodized Aluminum |
| Material | Extruded 6063-T6 aluminum alloy, self-lubricating polyester thrust bearings |
| Load Rating | Up to 600 lbs, high-frequency (rivnuts recommended in frame and door over 450 lbs) |
| Door Thickness | 1-3/8" to 1-3/4" |
| Max Door Width | 48" in 16 ga. hollow metal (min.) or 1/8" aluminum (min.) |

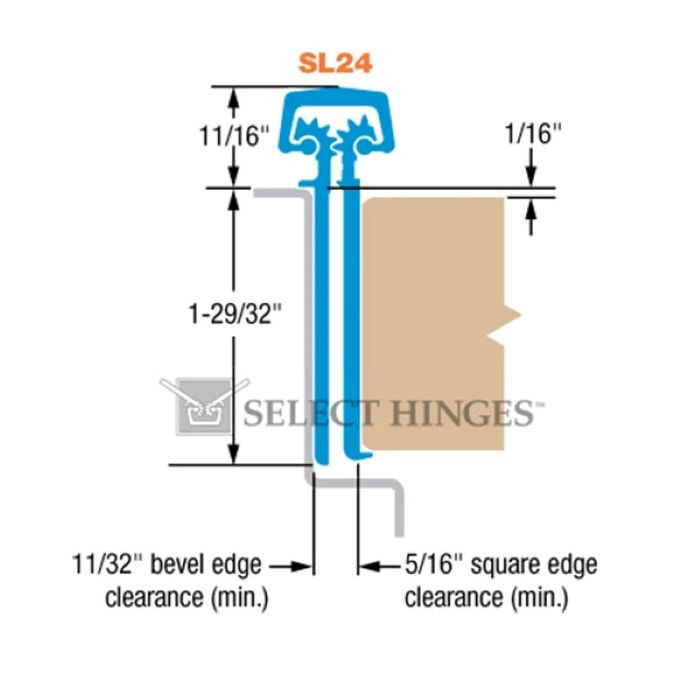

| Door Inset | 1/16" |
| Mortise Required | No |
Compliance & Codes
3-hour fire rating without pins or studs. Approved for both positive and negative pressure applications.
What's in the Box
One 83" SL24-CL-HD600 continuous hinge with mounting screws.
Pro-Installer FAQ
Q: Do I need to mortise the door and frame for this hinge?
A: No. The SL24 is a surface-mount, no-mortise design with a 1/16" door inset — it installs over the existing hinge line without cutting new mortises.
Q: My door is over 450 lbs — is HD600 enough?
A: HD600 is rated to 600 lbs for high-frequency use, but Select recommends rivnuts in the frame and door once the door exceeds 450 lbs. For low-to-medium-frequency doors up to 1,000 lbs, including most lead-lined doors, step up to the HD(LL) version.
Q: What length do I order for a standard 7'0" door?
A: 83" is the standard length for a nominal 7'0" door opening. Select also offers 85", 95", and 120" for taller openings, plus custom lengths.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
