Product Description

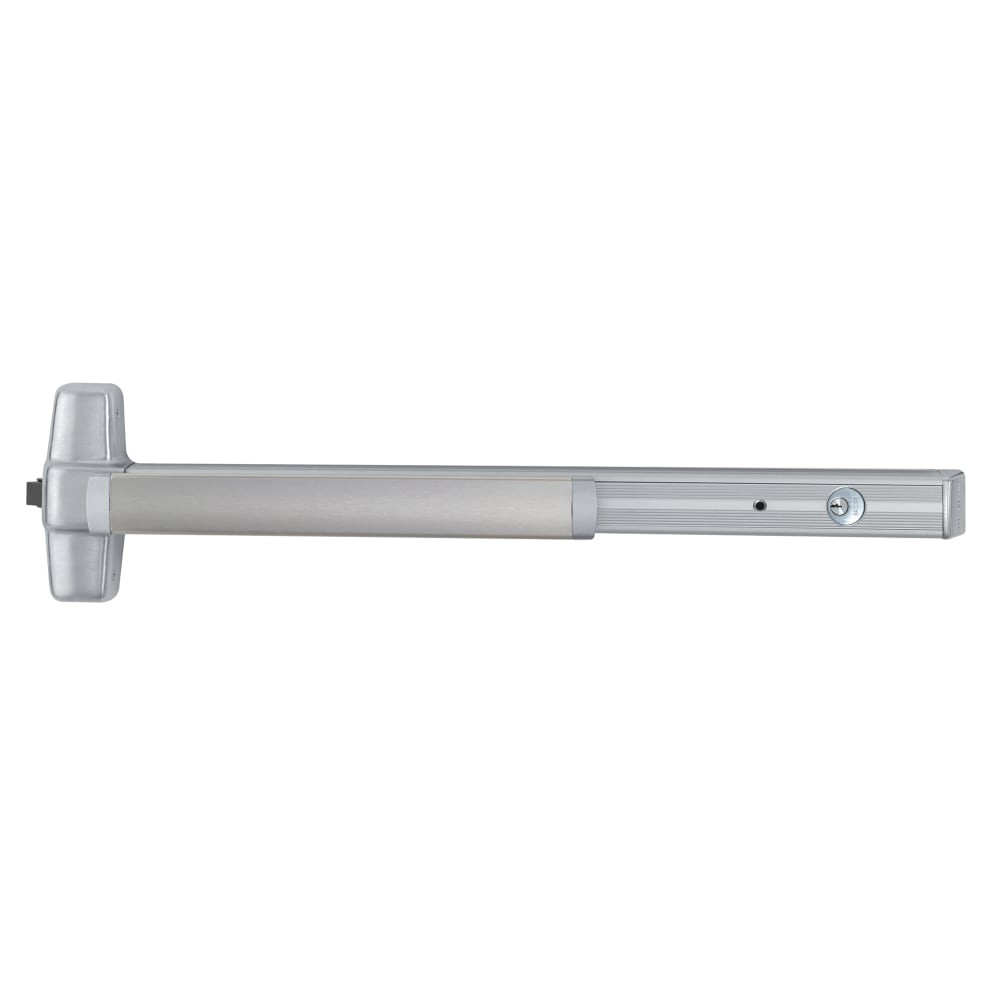

CXA99L-KC-12 3 28 LHR Von Duprin 99 Series Key Capture Rim Exit Device in Anodized Aluminum
The CXA99L-KC-12 3 28 LHR is a Von Duprin 99 Series Rim exit device with L-12 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 99 series rim exit device is your fastest retrofit option. It mounts entirely on the inside surface of the door with no door prep required. On apartment buildings and rental properties where you can't modify the door, specify a rim device.
| Specifications | |
|---|---|
| Part Number | CXA99L-KC-12 3 28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Key Capture |
| Lever Design | L-12 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Chexit Alarm |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-12 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
