Product Description

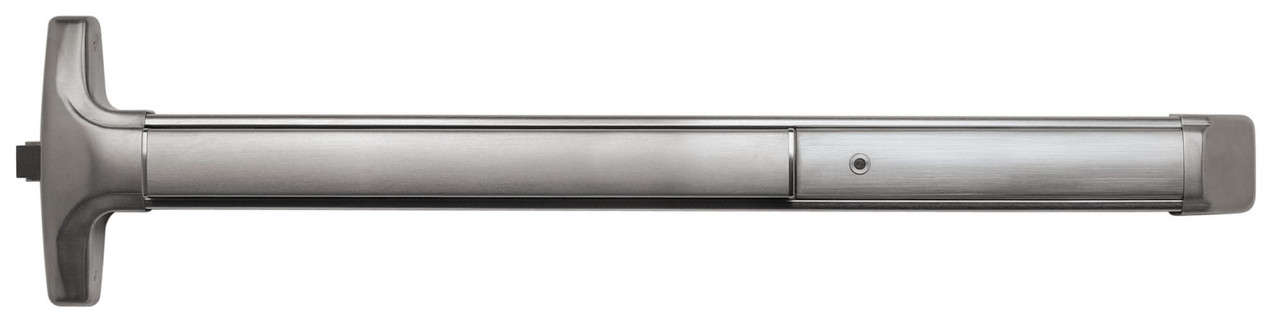

V4003WS EB WCD 711 99 36 Detex V40 Series Rim Exit Device — Exit Alarm Battery, Dark Bronze Anodized
Unauthorized exits cost retailers an average of $50,000 per year in shrinkage and security breaches. The Detex V4003WS with battery-powered exit alarm delivers 100dB notification the instant someone pushes through — no wiring, no electrician, installed in under an hour.
Weatherized model — designed for exterior doors exposed to rain, snow, humidity, and temperature extremes. Sealed components prevent corrosion and alarm circuit failure.
Technical Specifications
| SKU | V4003WS EB WCD 711 99 36 |
| Series | Detex V40 Value Series |
| Mount Type | Rim |
| Stile | Wide Stile |
| Grade | ANSI/BHMA Grade 1 |
| Function | Exit Alarm Battery |
| Finish | Dark Bronze Anodized (711) |
| Strike | 99 Surface Strike |
| Device Length | 36" |
| Power | 9V Battery (included) |
Compliance and Codes
- ANSI/BHMA A156.3 Grade 1 — highest commercial grade for panic hardware. Tested to 1,000,000 cycles.
- UL 305 — listed panic hardware for means of egress.
- ADA Compliant — operates with less than 15 pounds of force.
Function Details
- Battery-powered 100dB exit alarm — no wiring needed. 9V battery lasts up to 3 years in normal use. Easiest alarm install you'll do.
What's in the Box
- Detex V4003WS Rim Exit Device
- 99 Surface Strike
- Mounting hardware and template
- Installation instructions
- 9V battery
Pro-Installer FAQ
Can this device be cut down for narrower doors?
Yes, the pushbar can be field-cut for doors narrower than standard width. Measure carefully and cut from the hinge end only. The lock stile end must remain factory length for proper strike engagement.
How loud is the alarm?
The exit alarm produces approximately 100dB at 3 feet — comparable to a car horn. Loud enough to deter and alert without causing hearing damage for brief exposure.
Does Detex cover this under warranty?
Detex provides a limited lifetime warranty on mechanical components and 3 years on electronic components. This covers manufacturing defects — not field damage or improper installation.
Why Lock Depot? We specialize in commercial exit hardware. Factory-sealed, Grade 1 Detex devices ship same day on available stock. Need help specifying the right device for your opening? Call us.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
