Product Description

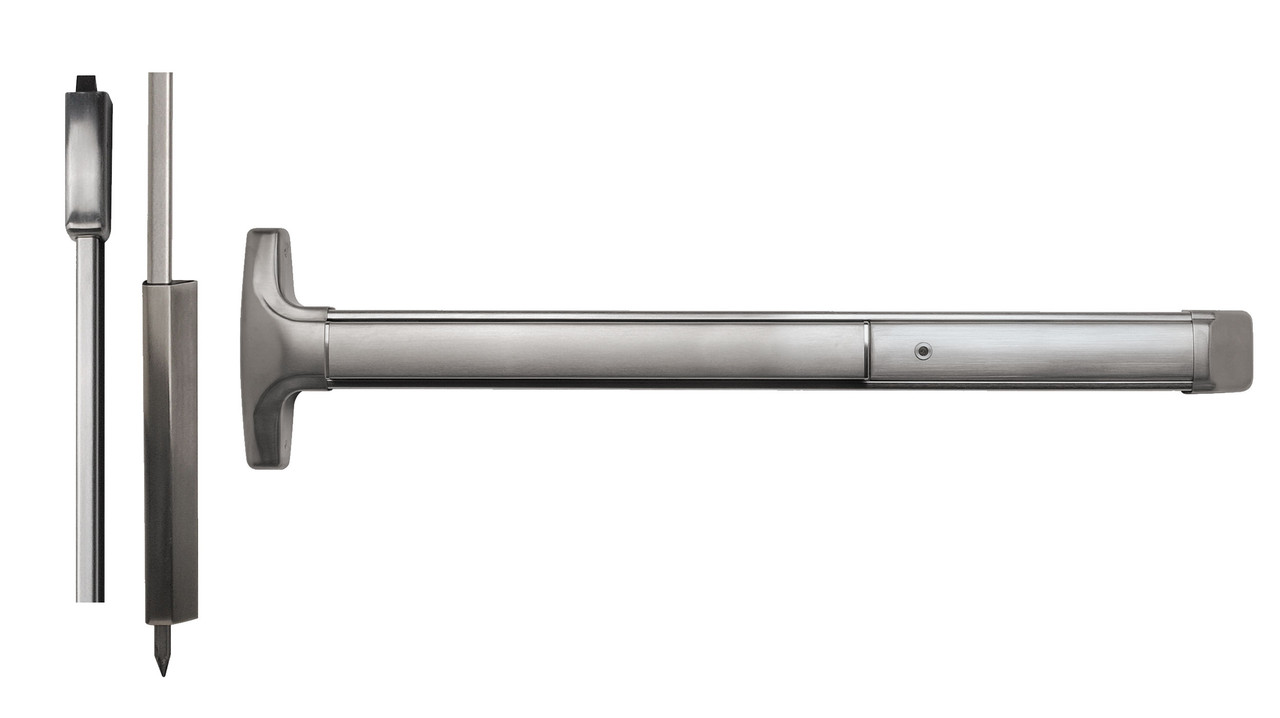

V50 EEFC3 CD 628 96 36X96PSO Detex V50 Series Surface Vertical Rod Exit Device — Delayed Egress with Fire Command, Cylinder Dogging, Satin Aluminum Clear Anodized
Secured exits need delayed egress, but fire code demands immediate release on alarm. The Detex V50 solves both — 15/30-second configurable delay that instantly releases when the fire alarm panel sends a signal through the FC3 input.
Technical Specifications
| SKU | V50 EEFC3 CD 628 96 36X96PSO |
| Series | Detex V50 Value Series |
| Mount Type | Surface Vertical Rod |
| Stile | Wide Stile |
| Grade | ANSI/BHMA Grade 1 |
| Function | Delayed Egress with Fire Command, Cylinder Dogging |
| Finish | Satin Aluminum Clear Anodized (628) |
| Strike | 96 Surface Strike |
| Device Length | 36" |
| Door Size | 36X96PSO |
| Power | 24VAC/DC |
Compliance and Codes
- ANSI/BHMA A156.3 Grade 1 — highest commercial grade for panic hardware. Tested to 1,000,000 cycles.
- UL 305 — listed panic hardware for means of egress.
- NFPA 101 Life Safety Code — compliant delayed egress per Section 7.2.1.6.
- IBC 1010.1.4.3 — meets International Building Code delayed egress requirements.
- ADA Compliant — operates with less than 15 pounds of force.
Function Details
- Delayed egress with fire command input — 15/30-second delay releases immediately on fire alarm signal from building panel.
- Cylinder dogging holds latch retracted with a key cylinder for authorized free egress during business hours. Cylinder sold separately.
What's in the Box
- Detex V50 Surface Vertical Rod Exit Device
- 96 Surface Strike
- Mounting hardware and template
- Installation instructions
- Delayed egress warning sign (required by code)
Note: Mortise cylinder sold separately — standard 1-1/8" mortise cylinder required for dogging function. Power supply sold separately — 24VAC/DC required. We recommend Altronix or similar UL-listed supply.
Pro-Installer FAQ
What's the maximum door height?
Standard configuration fits doors up to 36X96PSO. Top and bottom rod lengths are field-adjustable. For doors exceeding standard height, verify rod lengths before ordering.
Can the delay be changed from 15 to 30 seconds?
Yes, the device is field-selectable between 15 and 30 seconds. However, a 30-second delay requires written approval from your local Authority Having Jurisdiction (AHJ) or Fire Marshal before installation.
What cylinder does this require?
Standard 1-1/8" mortise cylinder. Compatible with most major manufacturers — Schlage, Yale, Sargent, Corbin Russwin. Match your existing keyway for master key integration.
