Product Description

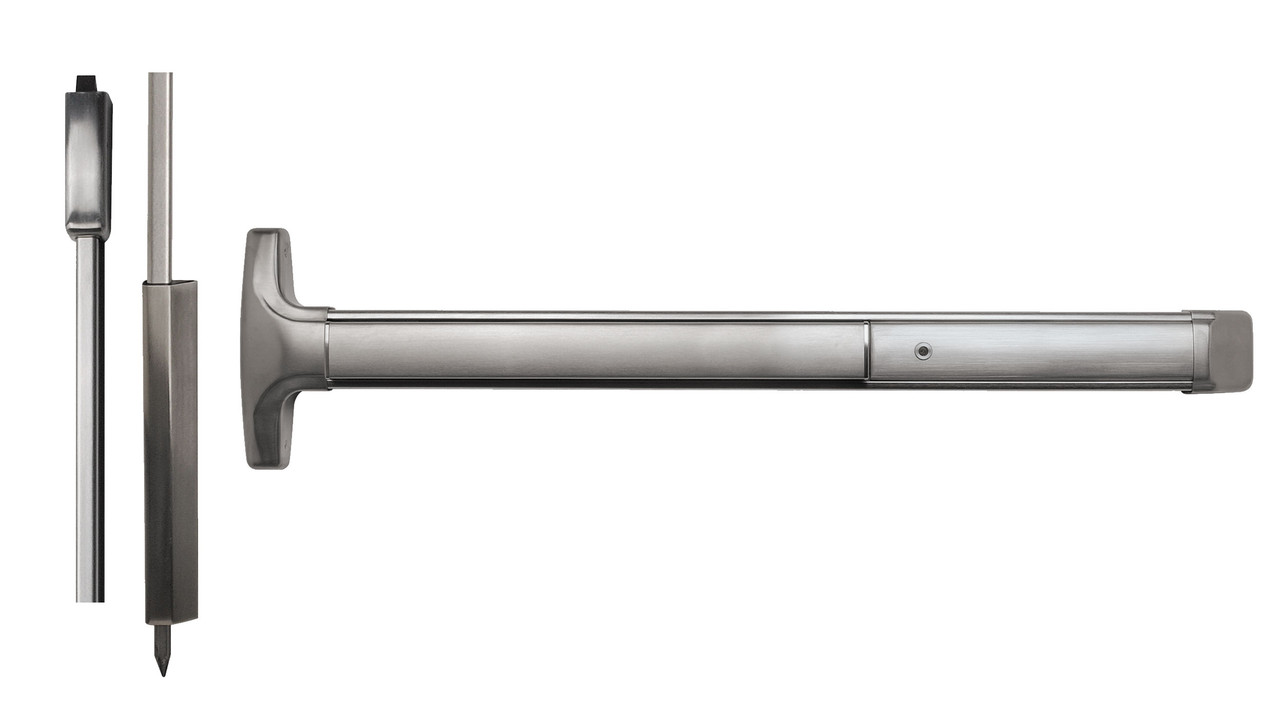

V50 HD 711 96 36X84 Detex V50 Series Surface Vertical Rod Exit Device — Hex Dogging, Dark Bronze Anodized
Not every exit needs electronics — sometimes you just need solid Grade 1 panic hardware that holds open during business hours and latches shut after. The Detex V50 with hex dogging does exactly that with a standard hex key.
Technical Specifications
| SKU | V50 HD 711 96 36X84 |
| Series | Detex V50 Value Series |
| Mount Type | Surface Vertical Rod |
| Stile | Wide Stile |
| Grade | ANSI/BHMA Grade 1 |
| Function | Hex Dogging |
| Finish | Dark Bronze Anodized (711) |
| Strike | 96 Surface Strike |
| Device Length | 36" |
| Door Size | 36X84 |
Compliance and Codes
- ANSI/BHMA A156.3 Grade 1 — highest commercial grade for panic hardware. Tested to 1,000,000 cycles.
- UL 305 — listed panic hardware for means of egress.
- ADA Compliant — operates with less than 15 pounds of force.
Function Details
- Hex key dogging holds pushbar retracted — basic hold-open with no cylinder required. Standard hex wrench operation.
What's in the Box
- Detex V50 Surface Vertical Rod Exit Device
- 96 Surface Strike
- Mounting hardware and template
- Installation instructions
Pro-Installer FAQ
What's the maximum door height?
Standard configuration fits doors up to 36X84. Top and bottom rod lengths are field-adjustable. For doors exceeding standard height, verify rod lengths before ordering.
Does Detex cover this under warranty?
Detex provides a limited lifetime warranty on mechanical components and 3 years on electronic components. This covers manufacturing defects — not field damage or improper installation.
Why Lock Depot? We specialize in commercial exit hardware. Factory-sealed, Grade 1 Detex devices ship same day on available stock. Need help specifying the right device for your opening? Call us.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
