Product Description
EL-9850WDC-DT-US15-4 Von Duprin 9850 Series with 990DT Dummy Trim Wood Door Concealed Vertical Cable Device with Electric Latch Retraction in Satin Nickel
The EL-9850WDC-DT-US15-4 is a Von Duprin 9850WDC Series Wood Door Concealed Vertical Cable exit device in Satin Nickel (US15/619), sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: When installing a 9849 cable device, make sure the cable runs clean without kinks. A kinked cable will bind and cause the device to malfunction. Route the cable through the door channels smoothly and check operation before finishing the install.
| Specifications | |
|---|---|
| Part Number | EL-9850WDC-DT-US15-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9850WDC |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Nickel (US15/619) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 9850WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Satin Nickel finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

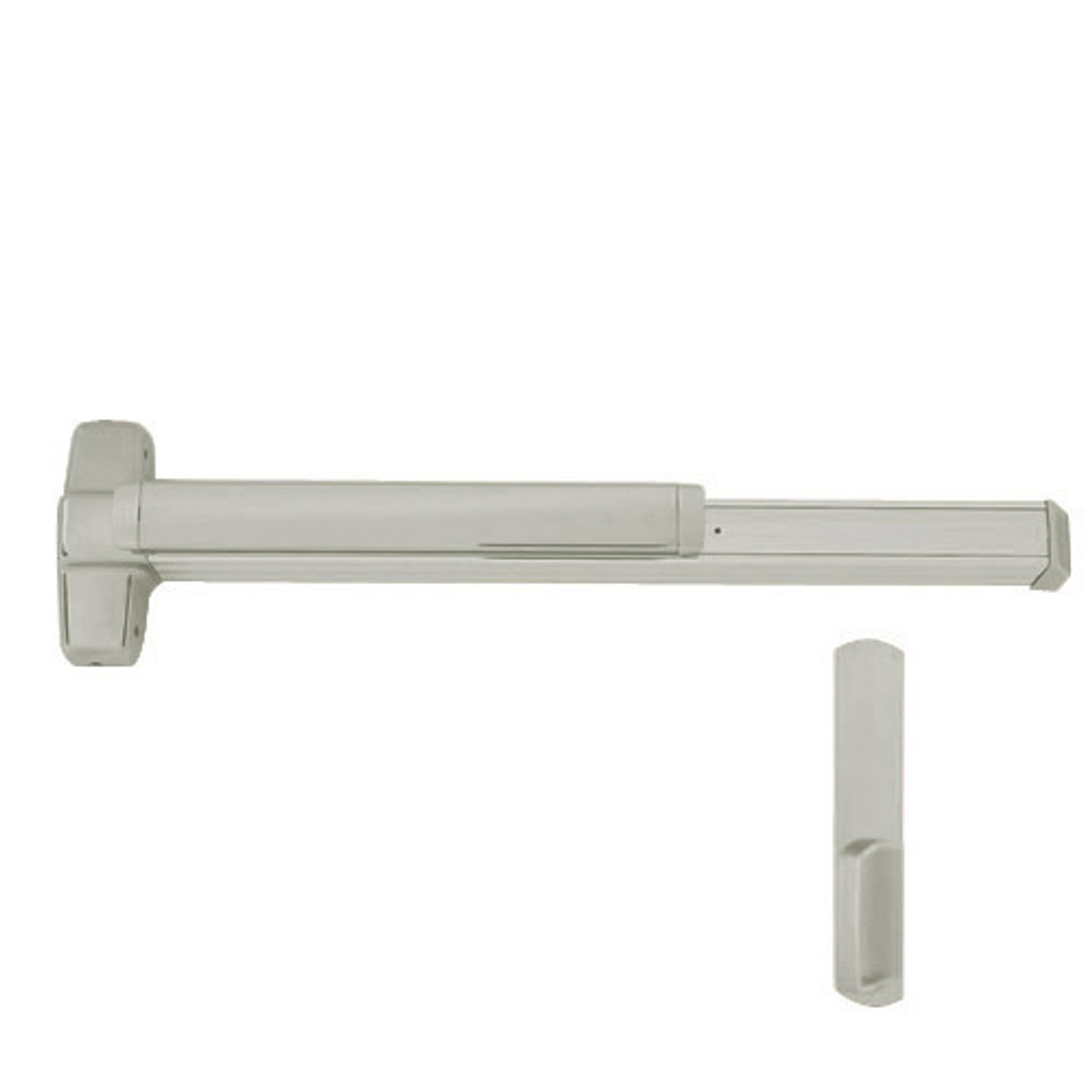

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
