Product Description

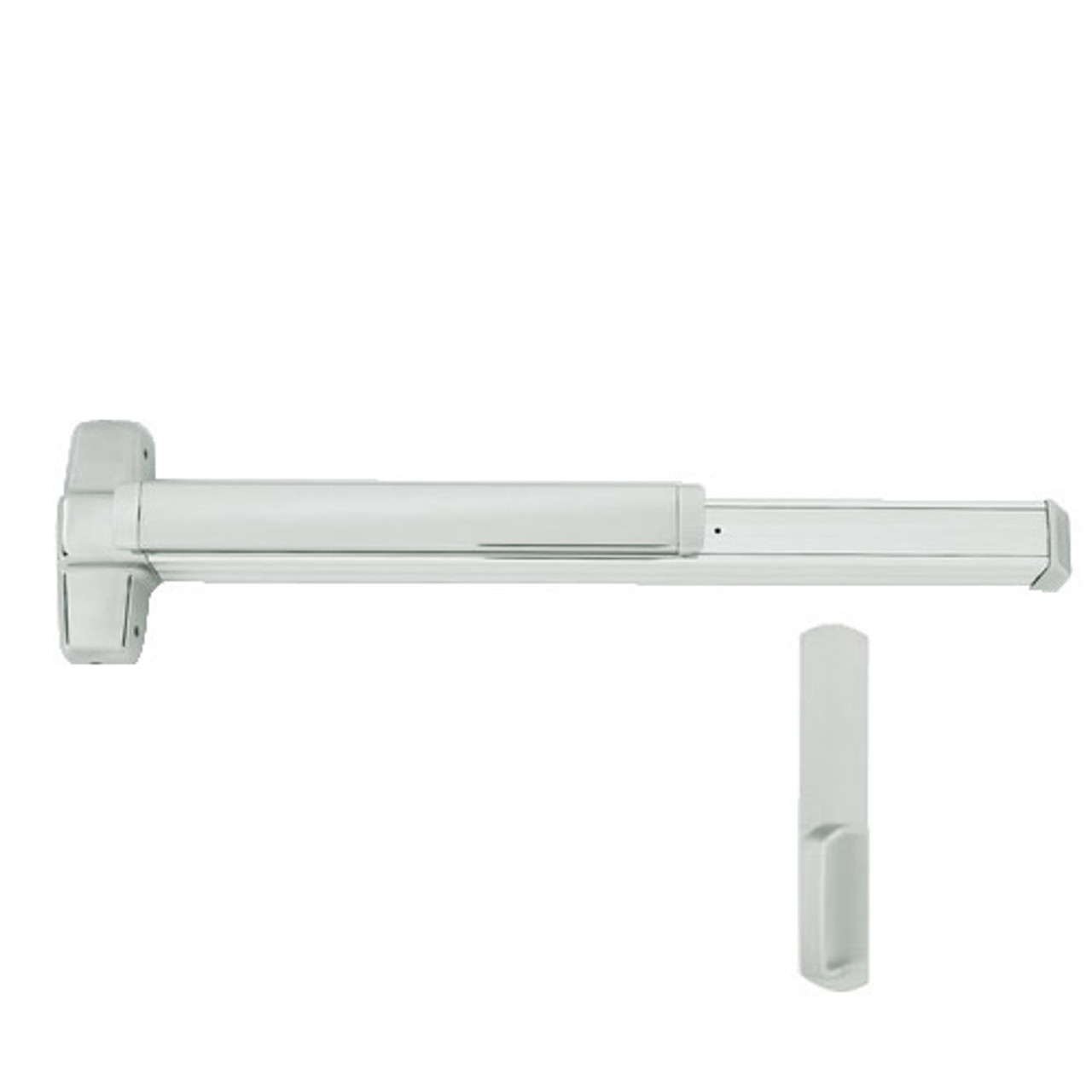

EL9847DT-US26D-3 Von Duprin 9847 Series Non Fire Rated Concealed Vertical Rod Exit Device with Electric Latch Retraction in Satin Chrome Finish
This device is for a 36" door
The Von Duprin EL9847DT-US26D-3 series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9847 vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.
The 9847 series has a "smooth mechanism case"
Features and Benefits:
- Satin Chrome Finish
- ANSI Function: 02
- Dummy Trim - Pull when Dogged
- Sex bolts are not included
- Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
- Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
- Non-handed operation provides greater flexibility
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 9847 series exit devices are UL listed for panic hardware
- Latch Bolt: Deadlocking top and bottom bolt, 5/8" (16mm) throw
- Electric latch retraction: Enables remote unlatching
- Strike: Top - 338 unfinished and Bottom - 385A unfinished strikes included as always
- Hex key dogging feature standard
- Includes 990DT standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
- Device centerline from finished floor: 39-5/8" (1006 mm) standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
