Product Description
UNIJ7500 218-314 689 Norton 7500 Series Grade 1 Top Jamb Door Closer with Unitrol Arm, Aluminum Painted, Non-Handed
Top jamb is the install you reach for when the door is a heavy storefront, an institutional fire-rated entry, or any opening where the closer cannot live on the door face. The push side jamb takes the cylinder; the arm reaches across to the door. The hard part on a top jamb job is matching closer power to the door size while still hitting reveal, working around the frame return, and passing inspection on a fire-rated opening. The Norton 7500 with the Unitrol arm and 218-314 mounting bracket handles that head-on: institutional heavy-duty body, multi-size spring 1 through 6 adjustable in the field, and a slide-track design that takes 2-1/8 inch through 3-1/4 inch reveals without a separate adapter.
- Grade 1, ANSI A156.4 institutional — 25 million cycle minimum, the spec for storefronts and high-traffic public buildings
- UL 10C 3-hour fire rated — passes inspection on a 3-hour fire door without extra hardware
- Field-adjustable spring size 1-6 — one closer fits doors from interior offices up to heavy exterior storefronts

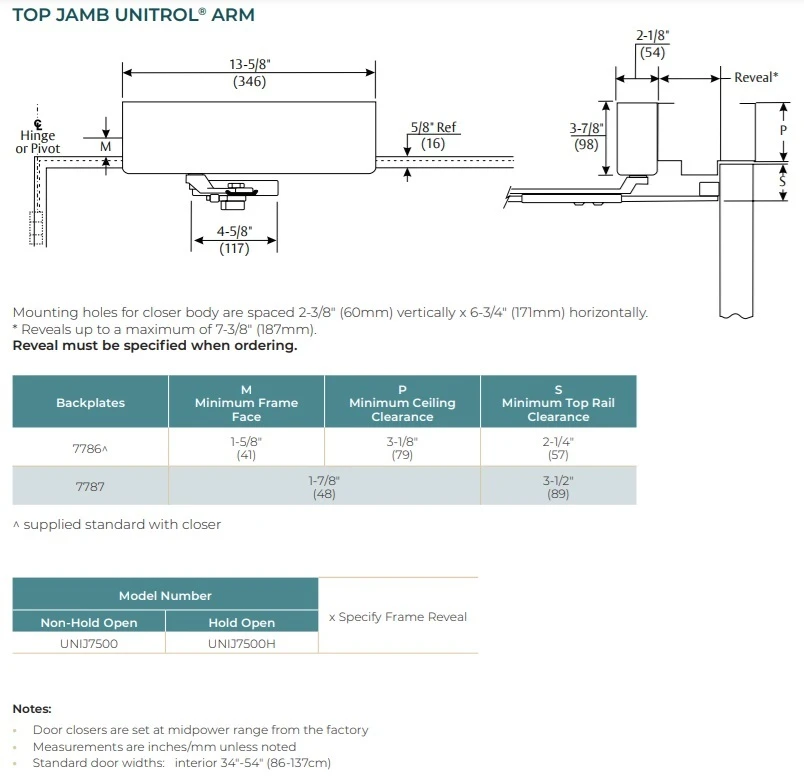

- Unitrol arm with 218-314 reveal bracket — covers 2-1/8 inch to 3-1/4 inch frame reveals out of the box
The body is full rack-and-pinion in cast aluminum alloy, projecting no more than 2-3/16 inch from the door surface, so you keep the clean line on the push side without a deep frame return. Three independent hex-key adjusted valves control sweep speed, latch speed, and backcheck intensity, plus a fourth valve for backcheck position. Closer fluid is rated to -40 F, which matters on exterior doors in cold climates where a generic closer slows down or stalls. The 689 finish is aluminum-painted, the standard institutional matte silver that hides field touch-ups and reads neutral against any frame color. If you need a beefier closer for a wind-loaded vestibule or an oversized door, step up to the Norton 7500BF or look at the Norton 9500 series; for a lighter interior application the Norton 1601 is a Grade 1 option at a smaller body size.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | UNI | Unitrol arm package — cylinder plus arm with built-in 80-degree backcheck adjustability |
| Mounting | J | Top Jamb push side mount — cylinder mounts to the frame head, arm reaches to the door |
| Closer Body | 7500 | Norton 7500 Series institutional Grade 1 closer body — cast aluminum, rack-and-pinion, sizes 1-6 |
| Reveal Range | 218-314 | Reveal bracket sized for 2-1/8 inch through 3-1/4 inch frame reveals (push side top jamb) |
| Finish | 689 | Aluminum Painted — standard institutional matte silver finish (BHMA 689) |
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | UNIJ7500 218-314 689 |
| Brand | Norton (ASSA ABLOY) |
| Series | 7500 Series Door Closer |
| Product Type | Surface Door Closer (Top Jamb mount) |
| Grade | ANSI/BHMA A156.4 Grade 1 (institutional, 25 million cycles) |
| Fire Rating | UL 10C, 3-hour fire rated (Type A) |
| ADA Compliance | Accessible (ADA compliant when adjusted per code) |
| Mount Type | Top Jamb (push side) |
| Arm | Unitrol arm with 218-314 reveal bracket (covers 2-1/8 inch - 3-1/4 inch reveals) |
| Body Material | Cast aluminum alloy, full rack-and-pinion |
| Body Projection | No more than 2-3/16 inch (55 mm) from door surface |
| Spring Power | Multi-size, field adjustable size 1 through size 6 |
| Adjustable Valves | Sweep speed, latch speed, backcheck intensity, backcheck position (hex-key adjusted, all independent) |
| Operating Temperature | Down to -40 F (closer fluid rated for extreme cold) |
| Cover | Plastic cover, standard |
| Finish | 689 Aluminum Painted (BHMA 689) |
| Handing | Non-handed (installs on either hand) |
| Country of Origin | USA |
| BAA Qualified | Yes (Buy American Act) |
| Pack Weight | 15 lbs |
| Pack Dimensions | 15.25 inch x 6.25 inch x 3.5 inch |
| Manufacturer Warranty | 25-year limited (mechanical) |
Compliance and Codes
UL 10C Listed for 3-hour fire doors. ANSI/BHMA A156.4 Grade 1. ADA accessible (closer must be field-adjusted to meet local opening force requirements). Environmental Product Declaration (EPD) certified.
What's in the Box
Norton 7500 Series closer body (size 1-6 adjustable), Unitrol arm assembly, 218-314 reveal bracket sized for 2-1/8 inch through 3-1/4 inch reveals, plastic cover, top jamb mounting screws, and installation template. Drop plates and special-application brackets are sold separately when the frame condition requires them.
Pro-Installer FAQ
Q: Will the 218-314 bracket work on a 4 inch reveal?
A: No. The 218-314 reveal bracket is sized for 2-1/8 inch through 3-1/4 inch reveals only. For deeper reveals you need a 314-414 (3-1/4 inch through 4-1/4 inch) or 414-518 (4-1/4 inch through 5-1/8 inch) bracket. Order the bracket that matches your actual reveal measurement; do not stack shims.
Q: Can I use this on a fire-rated door?
A: Yes. The 7500 series is UL 10C listed for up to 3-hour fire doors (Type A). Confirm the door label and frame label both list a closer requirement, then field-adjust spring size to meet the maximum opening force requirement on the door label.
Q: How do I set spring size in the field?
A: The 7500 has a hex-key adjustable spring power. Open the cover, locate the spring power adjustment screw on the back of the cylinder, and rotate to the size mark. Sizes 1 and 2 are interior office doors, 3 is a typical interior fire door, 4 is a standard exterior door, and 5-6 are heavy or oversized exterior doors. Adjust after install with the door under operation; do not preset off-door.
Lock Depot sells brand new Norton products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
Warranty Information
Norton (ASSA ABLOY) Limited Warranty
Norton, an ASSA ABLOY brand, warrants its door closers and operators sold in the United States to be free from defects in workmanship and materials under normal use and service.
Coverage period for this product (Norton 7500 Series): twenty-five (25) years on mechanical components from the date of delivery to the original purchaser, when properly installed and maintained per the manufacturer's installation instructions.
What is covered: defects in workmanship and materials under normal use and service. Liability is limited to repair or replacement of the product or component part that proves defective during the warranty period.
What is NOT covered: defects or damage arising from improper installation (including incorrect mounting bracket selection, wrong arm type, or installation outside the product's specified door size and weight range), lack of or improper maintenance, modification of the closer body or arm, abuse, accident, normal wear of the cover or finish, exposure to corrosive environments beyond the product's rating, or use of non-Norton arms, brackets, covers, or replacement parts.
Conditions that void warranty: any modification made to the product, including drilling, machining, or substitution of non-original components, voids the warranty regardless of whether the modification causes or contributes to the alleged defect. Field welding to the closer body or arm voids the warranty.
Finish coverage: the 689 aluminum painted finish is covered for two (2) years against defects in the paint application from the date of delivery. Field touch-up paint is available; using non-Norton touch-up materials voids finish coverage.
Implied warranties and damages: this warranty is in lieu of all other express warranties. To the extent permitted by law, all implied warranties are limited to the duration of this warranty. The manufacturer shall not be liable for any incidental or consequential damages, including labor cost to remove and reinstall a defective closer. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Claim procedure: for warranty claims, contact Lock Depot at sales@lock-depot.com or 561-753-4660. Include your order number, the closer body or arm in question, the install date, and a brief description of the defect. Lock Depot will coordinate the warranty claim with the manufacturer on your behalf, including any required prior authorization, return shipping instructions, and inspection. Do not return the product directly to the manufacturer without Lock Depot's authorization — unauthorized returns may not be accepted.
