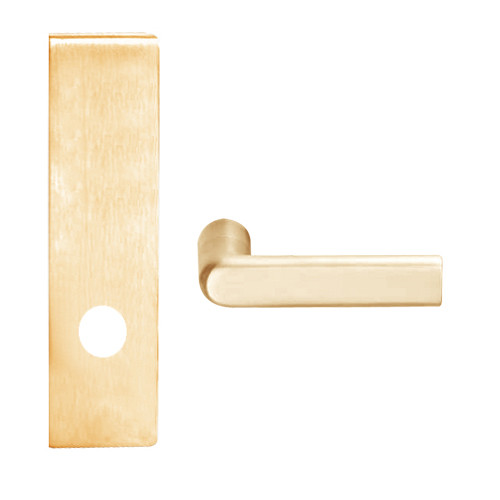

L0172-01N-612 Schlage L Series Double Dummy Trim Commercial Mortise Lock with 01 Cast Lever Design in Satin Bronze Finish
The Schlage L0172-01N-612 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L0172 series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Double dummy trim - Lever on both side fixed by mounting bar.
Features and Benefits:
- Satin Bronze finish
- 01 Cast lever style
- Escutcheon: N - Escutcheon (200mm x 64mm x 11mm)
- Non keyed function
- Double dummy trim
- Handing: Field-reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
