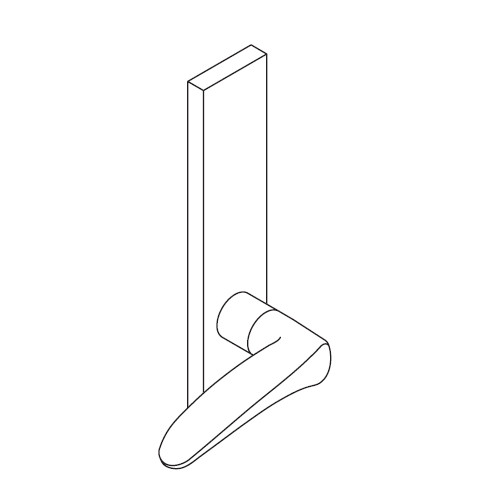

L9026P-12N-626-RH Schlage L Series Exit Lock with Cylinder — Grade 1 Commercial Mortise Lock, Satin Chrome (US26D)
The Schlage L9026P-12N-626-RH is the L Series Exit Lock with Cylinder (Grade 1) in Satin Chrome (US26D), built on the mortise case that has been the benchmark for commercial door hardware for decades. Key cylinder only outside, no lever (or knob) outside; lever only inside; latchbolt and deadlocking auxiliary latch. Exit and communicating doors that must stay free for egress from inside but allow keyed re-entry from outside with no operable outside lever — for example a stairwell re-entry or a one-way pass door where only a key gets you back in.
How This Function Operates
Outside: Key cylinder only — no outside lever. Key outside retracts the latchbolt to gain entry; there is no outside lever to operate.
Inside: Latchbolt is retracted by the inside lever. Inside lever always free for immediate egress.
Key: Key outside retracts the latchbolt. Available in rose or L escutcheon trim only; specify door handing.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series / Lock Type | L | Standard L Series Grade 1 mortise lock |
| Function | 9026 | Exit Lock with Cylinder |
| Cylinder | P | 6-pin conventional mortise cylinder included, Everest 29 keyway, two cut keys |
| Lever Design | 12 | 12 lever design |
| Rose / Escutcheon | N | N escutcheon (full-face escutcheon plate, 7-7/8 x 2-1/2 in) |
| Finish | 626 | Satin Chrome (US26D) |
| Handing | RH | Right Hand |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | L9026P-12N-626-RH |
| Brand | Schlage (Allegion) |
| Series | Schlage L Series |
| Product Type | Grade 1 Commercial Mortise Lock |
| Function | Exit Lock with Cylinder |
| ANSI/BHMA Grade | ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security) |
| Mount Type | Mortise |
| Lever Design | 12 — 12 lever design |
| Trim / Rose | N — N escutcheon (full-face escutcheon plate, 7-7/8 x 2-1/2 in) |
| Finish | 626 — Satin Chrome (US26D) |
| Handing | RH — Right Hand |
| Backset | 2-3/4 in (70 mm) only |
| Door Thickness | 1-3/4 in (44 mm) standard; 1-3/8 in (35 mm) optional; over 1-3/4 in specify thickness and position (EE/EI/EO/ED) |
| Lock Case Size | 4-7/16 in x 6-1/16 in x 1 in (113 x 154 x 25 mm) |
| Armor Front | 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional |
| Latchbolt | 3/4 in (19 mm) throw stainless steel latch with anti-friction tongue |
| Strike | ANSI curved-lip strike 1-1/4 in x 4-7/8 in (32 x 124 mm) with dust box; extended-lip options available |
| Cylinder | 6-pin conventional mortise cylinder (standard); also concealed mortise, FSIC, SFIC, and 7-pin SL formats plus less-cylinder |
| Keys Included | Two nickel-silver cut keys per lock (keyed functions) |
| Keyway | Patented Everest 29 S123 (standard); open, restricted, and Primus XP security levels available |
| Handing (field) | Field-reversible without disassembly (L9000); handed functions specify handing for indicator/keyed orientation |
| Material | Forged brass and cast stainless steel trim; stainless steel latch and deadbolt |
| Fire Rating | UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077) |
| Warranty | 10-year limited mechanical warranty |
| Lock Depot Price | $755.40 |
| MSRP (List) | $1259.00 |
Compliance & Codes
ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security). UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077). Complies with ICC A117.1; ADA-compliant lever return-to-door of 1/2 in or less meets CA Fire Code. Miami-Dade NOA and Florida Building Commission listed; Texas DOI (impact and non-impact); BAA compliant.
What's in the Box
Complete L9000 mortise lock case, 6-pin conventional mortise cylinder with two nickel-silver cut keys, latch with deadlocking auxiliary latch, armor front, ANSI strike with dust box, inside lever trim and rose or L escutcheon as specified, and mounting hardware.
Pro-Installer FAQ
Q: What backset and door prep does the L9026P-12N-626-RH need?
A: All L9000 mortise locks use a single 2-3/4 in backset and the standard L-series mortise pocket. Standard door thickness is 1-3/4 in (1-3/8 in optional); over 1-3/4 in, specify thickness and position EE/EI/EO/ED. The armor front is 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional.
Q: Is the L9026P-12N-626-RH fire rated, and is it handed?
A: Yes — UL 10C / ULC-S104 Listed for 3-hour fire doors. This SKU is supplied Right Hand because the function (indicator/keyed orientation) is handed.
Q: What cylinder and keyway does it use?
A: 6-pin conventional mortise cylinder, patented Everest 29 S123 keyway, two nickel-silver cut keys included. It also accepts concealed mortise, FSIC, SFIC, 7-pin SL, and Primus XP formats — match the keyway to your existing system.
