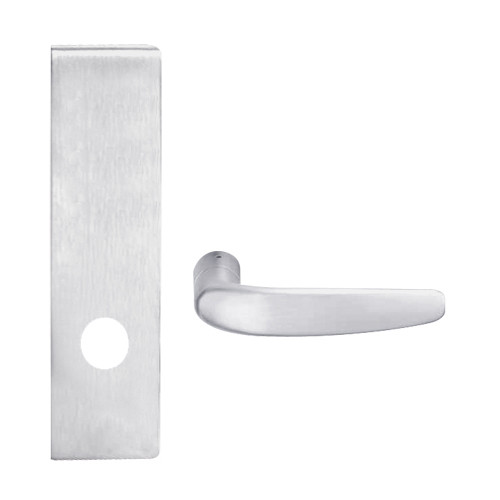

L9040-07N-626 Schlage L Series Privacy Commercial Mortise Lock with 07 Cast Lever Design in Satin Chrome Finish
The Schlage L9040-07N-626 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9040 series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Privacy lock - Latchbolt retracted by lever from either side unless outside is locked by inside thumbturn. Turning inside lever or closing door unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn (furnished) in access hole and rotate. Inside lever is always free for immediate egress.
Features and Benefits:
- Satin Chrome finish
- 07 Cast lever style
- Escutcheon: N - Escutcheon (200mm x 64mm x 11mm)
- Non keyed function
- Handing: Field-reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Deadbolt: Locks is without deadbolt
- Latchbolt: 3/4" Throw stainless steel with anti-friction tongue
- Floating mounting tabs automatically adjust to fit a beveled door edge.
