Product Description
L9070P-06N-605 Schlage L Series Classroom Lock — Grade 1 Commercial Mortise Lock, Bright Brass (US3)
The Schlage L9070P-06N-605 is the L Series Classroom Lock (ANSI F05, Grade 1) in Bright Brass (US3), built on the mortise case that has been the benchmark for commercial door hardware for decades. Key cylinder outside with lever; lever only inside; latchbolt and deadlocking auxiliary latch. Classroom and corridor doors where a teacher locks or unlocks the outside lever with a key from the hallway, while egress from inside is always free. The standard institutional classroom function.

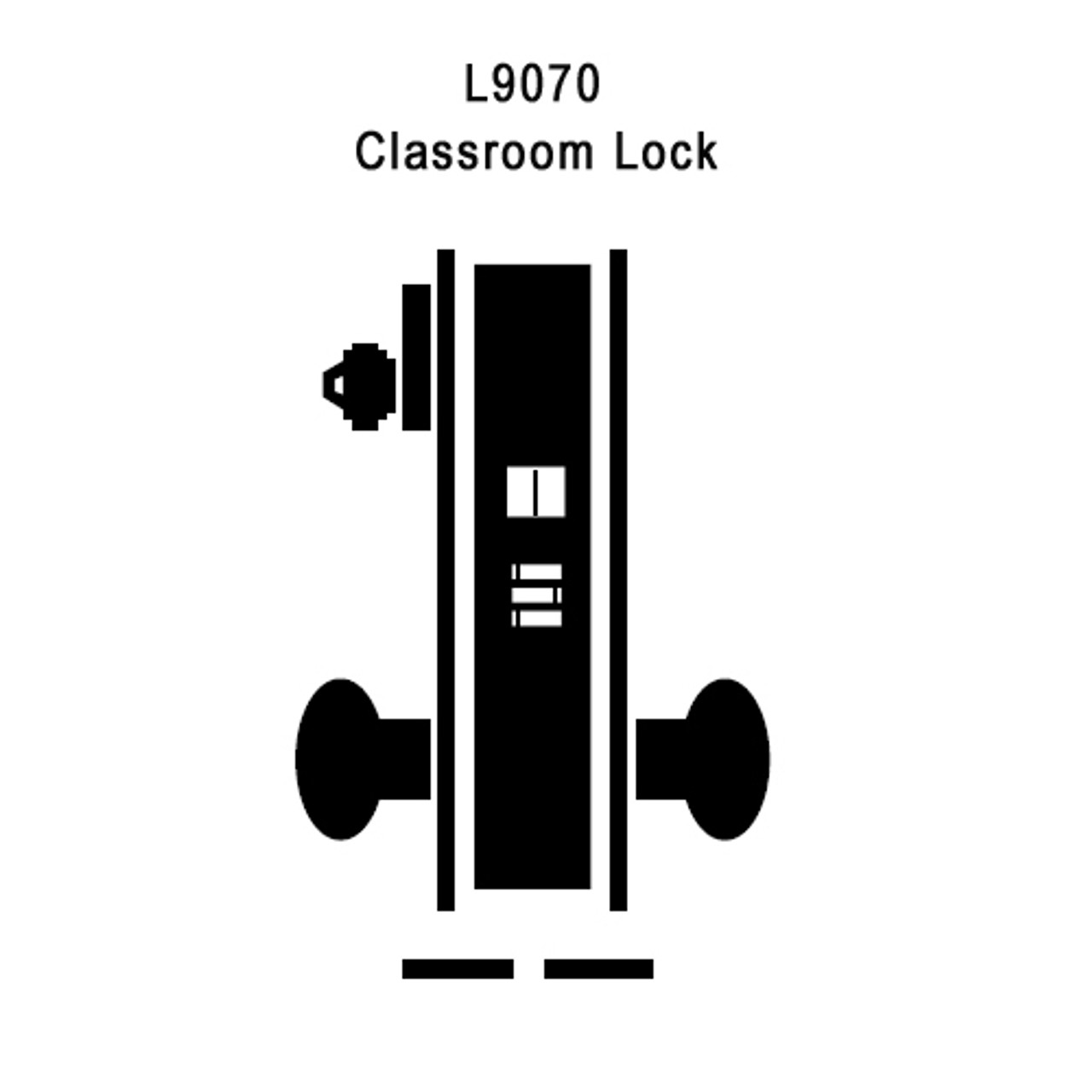

How This Function Operates
Outside: Latchbolt retracted by lever from either side. Outside lever is made inoperative by key outside. Outside lever remains inoperative until unlocked by key.
Inside: Inside lever always free for immediate egress.
Key: Key outside unlocks the outside lever and retracts the latchbolt. Exterior lockdown only.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series / Lock Type | L | Standard L Series Grade 1 mortise lock |
| Function | 9070 | Classroom Lock |
| Cylinder | P | 6-pin conventional mortise cylinder included, Everest 29 keyway, two cut keys |

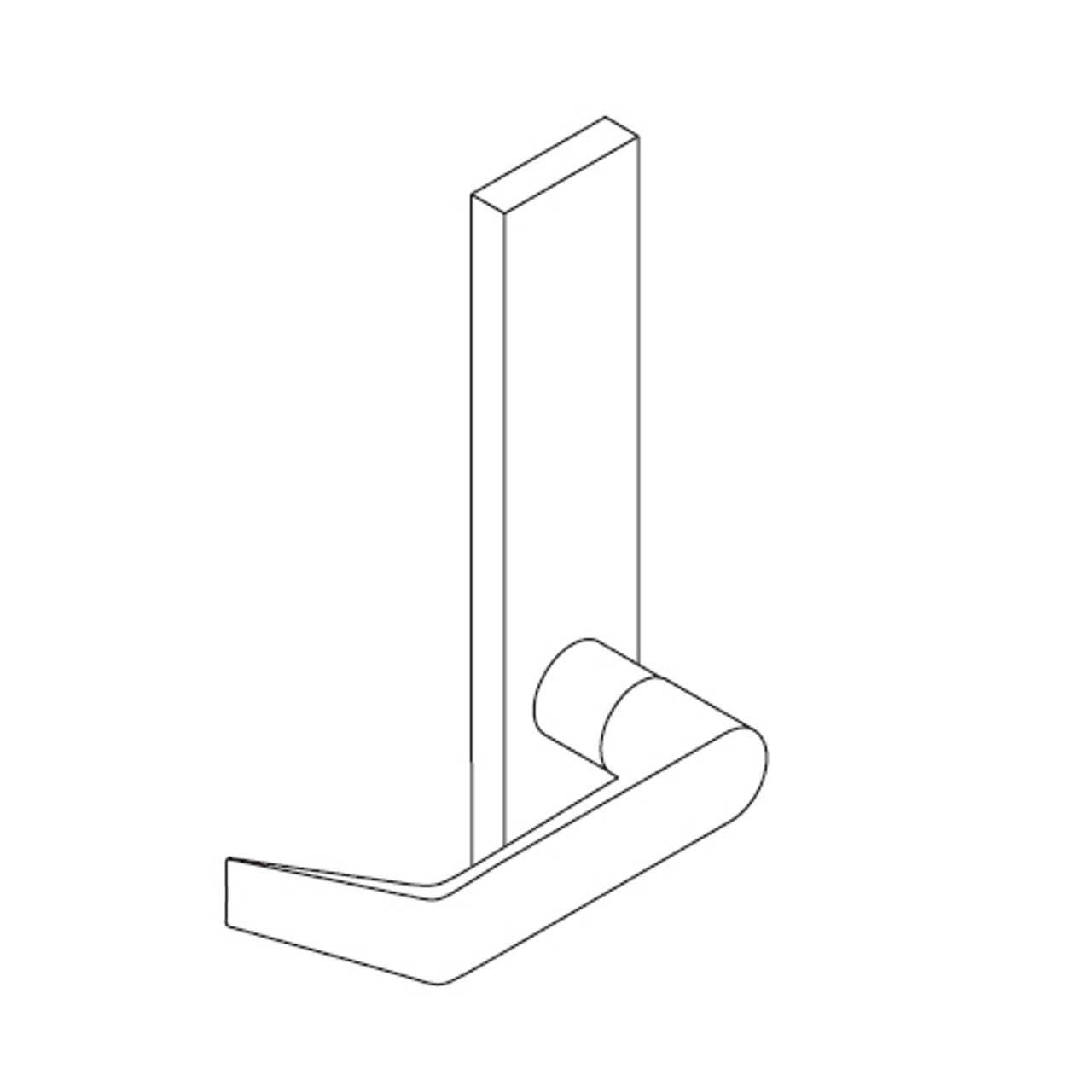

| Lever Design | 06 | 06 lever design (cast lever) |
| Rose / Escutcheon | N | N escutcheon (full-face escutcheon plate, 7-7/8 x 2-1/2 in) |
| Finish | 605 | Bright Brass (US3) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | L9070P-06N-605 |
| Brand | Schlage (Allegion) |
| Series | Schlage L Series |
| Product Type | Grade 1 Commercial Mortise Lock |
| Function | Classroom Lock (ANSI F05) |
| ANSI/BHMA Grade | ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security) |
| Mount Type | Mortise |
| Lever Design | 06 — 06 lever design (cast lever) |
| Trim / Rose | N — N escutcheon (full-face escutcheon plate, 7-7/8 x 2-1/2 in) |
| Finish | 605 — Bright Brass (US3) |
| Backset | 2-3/4 in (70 mm) only |
| Door Thickness | 1-3/4 in (44 mm) standard; 1-3/8 in (35 mm) optional; over 1-3/4 in specify thickness and position (EE/EI/EO/ED) |
| Lock Case Size | 4-7/16 in x 6-1/16 in x 1 in (113 x 154 x 25 mm) |
| Armor Front | 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional |
| Latchbolt | 3/4 in (19 mm) throw stainless steel latch with anti-friction tongue |
| Strike | ANSI curved-lip strike 1-1/4 in x 4-7/8 in (32 x 124 mm) with dust box; extended-lip options available |
| Cylinder | 6-pin conventional mortise cylinder (standard); also concealed mortise, FSIC, SFIC, and 7-pin SL formats plus less-cylinder |
| Keys Included | Two nickel-silver cut keys per lock (keyed functions) |
| Keyway | Patented Everest 29 S123 (standard); open, restricted, and Primus XP security levels available |
| Handing (field) | Field-reversible without disassembly (L9000); handed functions specify handing for indicator/keyed orientation |
| Material | Forged brass and cast stainless steel trim; stainless steel latch and deadbolt |
| Fire Rating | UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077) |
| Warranty | 10-year limited mechanical warranty |
| Lock Depot Price | $895.20 |
| MSRP (List) | $1492.00 |
Compliance & Codes
ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security). UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077). Complies with ICC A117.1; ADA-compliant lever return-to-door of 1/2 in or less meets CA Fire Code. Miami-Dade NOA and Florida Building Commission listed; Texas DOI (impact and non-impact); BAA compliant.
What's in the Box
Complete L9000 mortise lock case, 6-pin conventional mortise cylinder with two nickel-silver cut keys, latch with deadlocking auxiliary latch, armor front, ANSI strike with dust box, lever trim and roses/escutcheons as specified, and mounting hardware.
Pro-Installer FAQ
Q: What backset and door prep does the L9070P-06N-605 need?
A: All L9000 mortise locks use a single 2-3/4 in backset and the standard L-series mortise pocket. Standard door thickness is 1-3/4 in (1-3/8 in optional); over 1-3/4 in, specify thickness and position EE/EI/EO/ED. The armor front is 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional.
Q: Is the L9070P-06N-605 fire rated, and is it handed?
A: Yes — UL 10C / ULC-S104 Listed for 3-hour fire doors. L9000 trim is field-reversible without disassembly, so it adapts to either hand on site.
Q: What cylinder and keyway does it use?
A: 6-pin conventional mortise cylinder, patented Everest 29 S123 keyway, two nickel-silver cut keys included. It also accepts concealed mortise, FSIC, SFIC, 7-pin SL, and Primus XP formats — match the keyway to your existing system.
