L9080L-12L-613-LH Schlage L Series Less Cylinder Storeroom Commercial Mortise Lock with 12 Cast Lever Design in Oil Rubbed Bronze Finish
The Schlage L9080L-12L-613-LH commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9080L series meets ANSI/BHMA A156.13 series 1000 Grade 1.

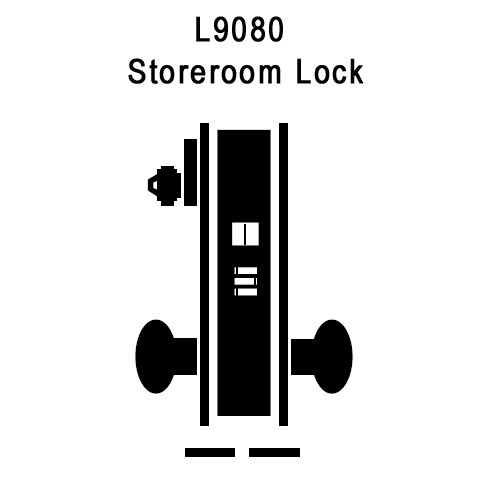

Storeroom lock - Latchbolt retracted by key outside or inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Features and Benefits:
- Oil Rubbed Bronze finish

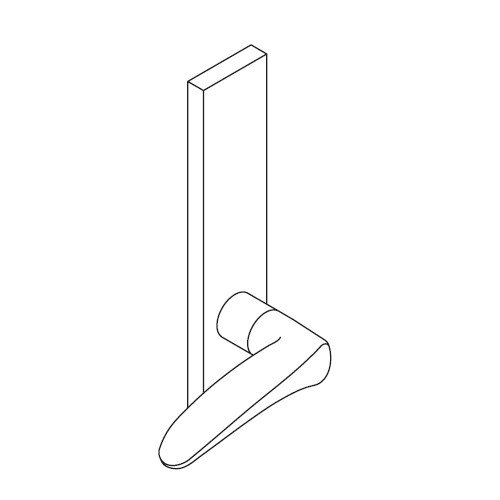

- 12 Cast lever style
- Escutcheon: L - Escutcheon (202mm x 44mm x 11mm)
- Single keyed function without deadbolt
- Handing: Left handed
- Door range: 1-3/4"
- Backset: 2-3/4"
- Cylinder: No cylinders are included with this lock
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
