Product Description

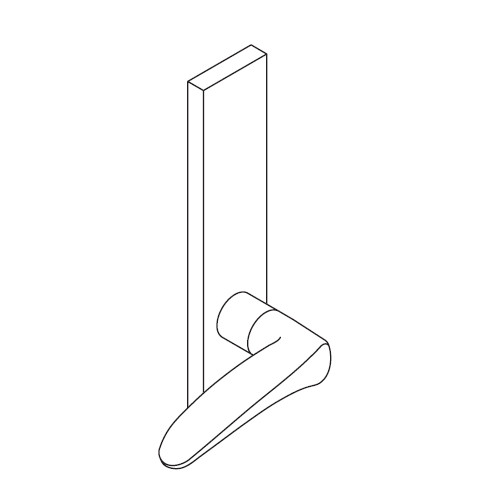

L9080P-12N-606-LH Schlage L Series Storeroom Lock — Grade 1 Commercial Mortise Lock, Satin Brass (US4)
The Schlage L9080P-12N-606-LH is the L Series Storeroom Lock (ANSI F07, Grade 1) in Satin Brass (US4), built on the mortise case that has been the benchmark for commercial door hardware for decades. Key cylinder outside with lever; lever only inside; latchbolt and deadlocking auxiliary latch. Storerooms, supply closets, IT and mechanical rooms, and any opening that must stay locked at all times against the corridor. The outside lever is permanently fixed so the door is always secure; entry is by key only, exit is always free.
How This Function Operates
Outside: Outside lever is always fixed. Latchbolt retracted by key outside.
Inside: Latchbolt retracted by the inside lever. Inside lever always free for immediate egress.
Key: Key outside retracts the latchbolt; the outside lever never unlocks (always fixed).
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series / Lock Type | L | Standard L Series Grade 1 mortise lock |
| Function | 9080 | Storeroom Lock |
| Cylinder | P | 6-pin conventional mortise cylinder included, Everest 29 keyway, two cut keys |
| Lever Design | 12 | 12 lever design |
| Rose / Escutcheon | N | N escutcheon (full-face escutcheon plate, 7-7/8 x 2-1/2 in) |
| Finish | 606 | Satin Brass (US4) |
| Handing | LH | Left Hand |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | L9080P-12N-606-LH |
| Brand | Schlage (Allegion) |
| Series | Schlage L Series |
| Product Type | Grade 1 Commercial Mortise Lock |
| Function | Storeroom Lock (ANSI F07) |
| ANSI/BHMA Grade | ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security) |
| Mount Type | Mortise |
| Lever Design | 12 — 12 lever design |
| Trim / Rose | N — N escutcheon (full-face escutcheon plate, 7-7/8 x 2-1/2 in) |
| Finish | 606 — Satin Brass (US4) |
| Handing | LH — Left Hand |
| Backset | 2-3/4 in (70 mm) only |
| Door Thickness | 1-3/4 in (44 mm) standard; 1-3/8 in (35 mm) optional; over 1-3/4 in specify thickness and position (EE/EI/EO/ED) |
| Lock Case Size | 4-7/16 in x 6-1/16 in x 1 in (113 x 154 x 25 mm) |
| Armor Front | 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional |
| Latchbolt | 3/4 in (19 mm) throw stainless steel latch with anti-friction tongue |
| Strike | ANSI curved-lip strike 1-1/4 in x 4-7/8 in (32 x 124 mm) with dust box; extended-lip options available |
| Cylinder | 6-pin conventional mortise cylinder (standard); also concealed mortise, FSIC, SFIC, and 7-pin SL formats plus less-cylinder |
| Keys Included | Two nickel-silver cut keys per lock (keyed functions) |
| Keyway | Patented Everest 29 S123 (standard); open, restricted, and Primus XP security levels available |
| Handing (field) | Field-reversible without disassembly (L9000); handed functions specify handing for indicator/keyed orientation |
| Material | Forged brass and cast stainless steel trim; stainless steel latch and deadbolt |
| Fire Rating | UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077) |
| Warranty | 10-year limited mechanical warranty |
| Lock Depot Price | $895.20 |
| MSRP (List) | $1492.00 |
Compliance & Codes
ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security). UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077). Complies with ICC A117.1; ADA-compliant lever return-to-door of 1/2 in or less meets CA Fire Code. Miami-Dade NOA and Florida Building Commission listed; Texas DOI (impact and non-impact); BAA compliant.
What's in the Box
Complete L9000 mortise lock case, 6-pin conventional mortise cylinder with two nickel-silver cut keys, latch with deadlocking auxiliary latch, armor front, ANSI strike with dust box, lever trim and roses/escutcheons as specified, and mounting hardware.
Pro-Installer FAQ
Q: What backset and door prep does the L9080P-12N-606-LH need?
A: All L9000 mortise locks use a single 2-3/4 in backset and the standard L-series mortise pocket. Standard door thickness is 1-3/4 in (1-3/8 in optional); over 1-3/4 in, specify thickness and position EE/EI/EO/ED. The armor front is 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional.
Q: Is the L9080P-12N-606-LH fire rated, and is it handed?
A: Yes — UL 10C / ULC-S104 Listed for 3-hour fire doors. This SKU is supplied Left Hand because the function (indicator/keyed orientation) is handed.
Q: What cylinder and keyway does it use?
A: 6-pin conventional mortise cylinder, patented Everest 29 S123 keyway, two nickel-silver cut keys included. It also accepts concealed mortise, FSIC, SFIC, 7-pin SL, and Primus XP formats — match the keyway to your existing system.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
