Product Description

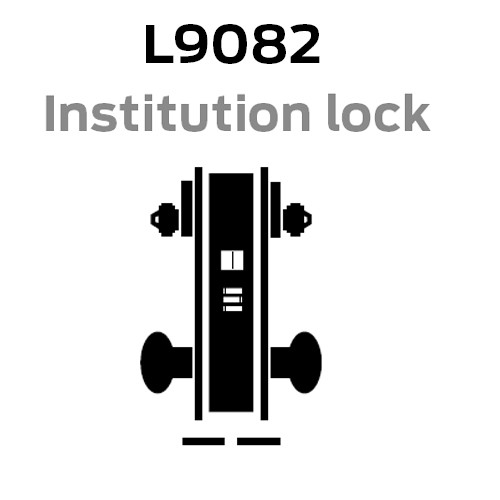

L9082P-18A-625 Schlage L Series Institution Lock — Grade 1 Commercial Mortise Lock, Bright Chrome (US26)
The Schlage L9082P-18A-625 is the L Series Institution Lock (ANSI F30, Grade 1) in Bright Chrome (US26), built on the mortise case that has been the benchmark for commercial door hardware for decades. Key cylinder both sides; latchbolt with deadlocking auxiliary latch. Both levers are normally fixed and released only by key. Institutional openings where both sides must stay secured at all times and access is strictly key-controlled from either face, such as detention support spaces and secure storage. Caution: locks that require a key for egress on a path of egress are a life-safety consideration — install in accordance with existing codes only.
How This Function Operates
Outside: Both levers are made inoperative by key from either side; while locked the levers do not retract the latchbolt.
Inside: Both levers are fixed when locked — there is no free inside egress in the locked state; key use is required to retract the latchbolt from either side.
Key: Key use on either side unlocks both levers and retracts the latchbolt.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series / Lock Type | L | Standard L Series Grade 1 mortise lock |
| Function | 9082 | Institution Lock |
| Cylinder | P | 6-pin conventional mortise cylinder included, Everest 29 keyway, two cut keys |
| Lever Design | 18 | 18 lever design |
| Rose / Escutcheon | A | A rose (standard round sectional rose, 2-1/8 in) |
| Finish | 625 | Bright Chrome (US26) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | L9082P-18A-625 |
| Brand | Schlage (Allegion) |
| Series | Schlage L Series |
| Product Type | Grade 1 Commercial Mortise Lock |
| Function | Institution Lock (ANSI F30) |
| ANSI/BHMA Grade | ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security) |
| Mount Type | Mortise |
| Lever Design | 18 — 18 lever design |
| Trim / Rose | A — A rose (standard round sectional rose, 2-1/8 in) |
| Finish | 625 — Bright Chrome (US26) |
| Backset | 2-3/4 in (70 mm) only |
| Door Thickness | 1-3/4 in (44 mm) standard; 1-3/8 in (35 mm) optional; over 1-3/4 in specify thickness and position (EE/EI/EO/ED) |
| Lock Case Size | 4-7/16 in x 6-1/16 in x 1 in (113 x 154 x 25 mm) |
| Armor Front | 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional |
| Latchbolt | 3/4 in (19 mm) throw stainless steel latch with anti-friction tongue |
| Strike | ANSI curved-lip strike 1-1/4 in x 4-7/8 in (32 x 124 mm) with dust box; extended-lip options available |
| Cylinder | 6-pin conventional mortise cylinder (standard); also concealed mortise, FSIC, SFIC, and 7-pin SL formats plus less-cylinder |
| Keys Included | Two nickel-silver cut keys per lock (keyed functions) |
| Keyway | Patented Everest 29 S123 (standard); open, restricted, and Primus XP security levels available |
| Handing (field) | Field-reversible without disassembly (L9000); handed functions specify handing for indicator/keyed orientation |
| Material | Forged brass and cast stainless steel trim; stainless steel latch and deadbolt |
| Fire Rating | UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077) |
| Warranty | 10-year limited mechanical warranty |
| Lock Depot Price | $964.20 |
| MSRP (List) | $1607.00 |
Compliance & Codes
ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security). UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077). Complies with ICC A117.1; ADA-compliant lever return-to-door of 1/2 in or less meets CA Fire Code. Miami-Dade NOA and Florida Building Commission listed; Texas DOI (impact and non-impact); BAA compliant.
What's in the Box
Complete L9000 mortise lock case, two 6-pin conventional mortise cylinders with nickel-silver cut keys, latch with deadlocking auxiliary latch, armor front, ANSI strike with dust box, lever trim and roses/escutcheons as specified, and mounting hardware.
Pro-Installer FAQ
Q: What backset and door prep does the L9082P-18A-625 need?
A: All L9000 mortise locks use a single 2-3/4 in backset and the standard L-series mortise pocket. Standard door thickness is 1-3/4 in (1-3/8 in optional); over 1-3/4 in, specify thickness and position EE/EI/EO/ED. The armor front is 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional.
Q: Is the L9082P-18A-625 fire rated, and is it handed?
A: Yes — UL 10C / ULC-S104 Listed for 3-hour fire doors. L9000 trim is field-reversible without disassembly, so it adapts to either hand on site.
Q: What cylinder and keyway does it use?
A: 6-pin conventional mortise cylinder, patented Everest 29 S123 keyway, two nickel-silver cut keys included. It also accepts concealed mortise, FSIC, SFIC, 7-pin SL, and Primus XP formats — match the keyway to your existing system.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
