Product Description
L9457P-17B-630 Schlage L Series Classroom Security Lock with Deadbolt — Grade 1 Commercial Mortise Lock, Satin Stainless Steel (US32D)
The Schlage L9457P-17B-630 is the L Series Classroom Security Lock with Deadbolt (ANSI F33, Grade 1) in Satin Stainless Steel (US32D), built on the mortise case that has been the benchmark for commercial door hardware for decades. Key cylinder both sides; deadbolt and latchbolt. Door can be secured or released by key from either side. Classrooms needing both lockdown capability and a deadbolt, operable from inside the room or the corridor. Supports active-shooter lockdown where the teacher secures the deadbolt from within while keeping single-motion egress.

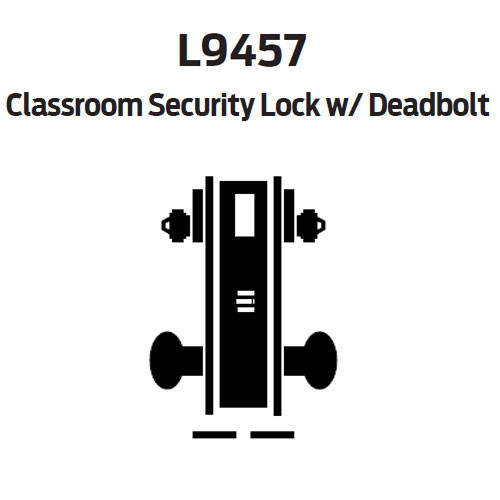

How This Function Operates
Outside: Latchbolt retracted by lever from either side. Outside lever is made inoperative when the deadbolt is thrown by key from either side.
Inside: Rotating the inside lever retracts both the deadbolt and latchbolt and unlocks the outside lever. Inside lever always free for immediate egress.
Key: Key on either side retracts both latchbolt and deadbolt and unlocks the outside lever, so the classroom can be locked down or released from inside or outside.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series / Lock Type | L | Standard L Series Grade 1 mortise lock |
| Function | 9457 | Classroom Security Lock with Deadbolt |
| Cylinder | P | 6-pin conventional mortise cylinder included, Everest 29 keyway, two cut keys |
| Lever Design | 17 | 17 lever design |
| Rose / Escutcheon | B | B rose (round sectional rose, 2-9/16 in) |
| Finish | 630 | Satin Stainless Steel (US32D) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | L9457P-17B-630 |
| Brand | Schlage (Allegion) |
| Series | Schlage L Series |
| Product Type | Grade 1 Commercial Mortise Lock |
| Function | Classroom Security Lock with Deadbolt (ANSI F33) |
| ANSI/BHMA Grade | ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security) |
| Mount Type | Mortise |
| Lever Design | 17 — 17 lever design |
| Trim / Rose | B — B rose (round sectional rose, 2-9/16 in) |
| Finish | 630 — Satin Stainless Steel (US32D) |
| Backset | 2-3/4 in (70 mm) only |
| Door Thickness | 1-3/4 in (44 mm) standard; 1-3/8 in (35 mm) optional; over 1-3/4 in specify thickness and position (EE/EI/EO/ED) |
| Lock Case Size | 4-7/16 in x 6-1/16 in x 1 in (113 x 154 x 25 mm) |
| Armor Front | 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional |
| Latchbolt | 3/4 in (19 mm) throw stainless steel latch with anti-friction tongue |
| Deadbolt | 1 in (25 mm) throw stainless steel deadbolt (deadbolt functions only) |
| Strike | ANSI curved-lip strike 1-1/4 in x 4-7/8 in (32 x 124 mm) with dust box; extended-lip options available |
| Cylinder | 6-pin conventional mortise cylinder (standard); also concealed mortise, FSIC, SFIC, and 7-pin SL formats plus less-cylinder |
| Keys Included | Two nickel-silver cut keys per lock (keyed functions) |
| Keyway | Patented Everest 29 S123 (standard); open, restricted, and Primus XP security levels available |
| Handing (field) | Field-reversible without disassembly (L9000); handed functions specify handing for indicator/keyed orientation |
| Material | Forged brass and cast stainless steel trim; stainless steel latch and deadbolt |
| Fire Rating | UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077) |
| Warranty | 10-year limited mechanical warranty |
| Lock Depot Price | $1002.00 |
| MSRP (List) | $1670.00 |
Compliance & Codes
ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security). UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077). Complies with ICC A117.1; ADA-compliant lever return-to-door of 1/2 in or less meets CA Fire Code. Miami-Dade NOA and Florida Building Commission listed; Texas DOI (impact and non-impact); BAA compliant.
What's in the Box
Complete L9000 mortise lock case with deadbolt, two 6-pin conventional mortise cylinders with nickel-silver cut keys, latch with deadlocking auxiliary latch, armor front, ANSI strike with dust box, lever trim and roses/escutcheons as specified, and mounting hardware.
Pro-Installer FAQ
Q: What backset and door prep does the L9457P-17B-630 need?
A: All L9000 mortise locks use a single 2-3/4 in backset and the standard L-series mortise pocket. Standard door thickness is 1-3/4 in (1-3/8 in optional); over 1-3/4 in, specify thickness and position EE/EI/EO/ED. The armor front is 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional.
Q: Is the L9457P-17B-630 fire rated, and is it handed?
A: Yes — UL 10C / ULC-S104 Listed for 3-hour fire doors. L9000 trim is field-reversible without disassembly, so it adapts to either hand on site.
Q: What cylinder and keyway does it use?
A: 6-pin conventional mortise cylinder, patented Everest 29 S123 keyway, two nickel-silver cut keys included. It also accepts concealed mortise, FSIC, SFIC, 7-pin SL, and Primus XP formats — match the keyway to your existing system.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
