Product Description
L9480P-18A-612 Schlage L Series Storeroom Lock with Deadbolt — Grade 1 Commercial Mortise Lock, Satin Bronze (US10)
The Schlage L9480P-18A-612 is the L Series Storeroom Lock with Deadbolt (Grade 1) in Satin Bronze (US10), built on the mortise case that has been the benchmark for commercial door hardware for decades. Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch. Outside lever always fixed. Storeroom and secured-storage doors where the outside lever stays fixed at all times and a thumbturn-controlled deadbolt adds positive locking, while occupants always retain single-motion egress. The emergency-key-only deadbolt retraction keeps the outside face hard-secured.
How This Function Operates
Outside: Outside lever (or knob) is always fixed. Latchbolt is retracted by the inside lever. Key outside retracts the latchbolt but does NOT retract the deadbolt unless an emergency key (sold separately) is used.
Inside: Deadbolt is thrown or retracted by rotating the inside thumbturn. Rotating the inside lever retracts both the deadbolt and latchbolt. Inside lever always free for immediate egress.
Key: Key outside retracts the latchbolt only; deadbolt retraction from outside requires the separate emergency key. Optional XL13-439 allows an emergency key to retract both bolts overriding a held thumbturn. Not available in SFIC or Everest SL formats.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series / Lock Type | L | Standard L Series Grade 1 mortise lock |
| Function | 9480 | Storeroom Lock with Deadbolt |
| Cylinder | P | 6-pin conventional mortise cylinder included, Everest 29 keyway, two cut keys |

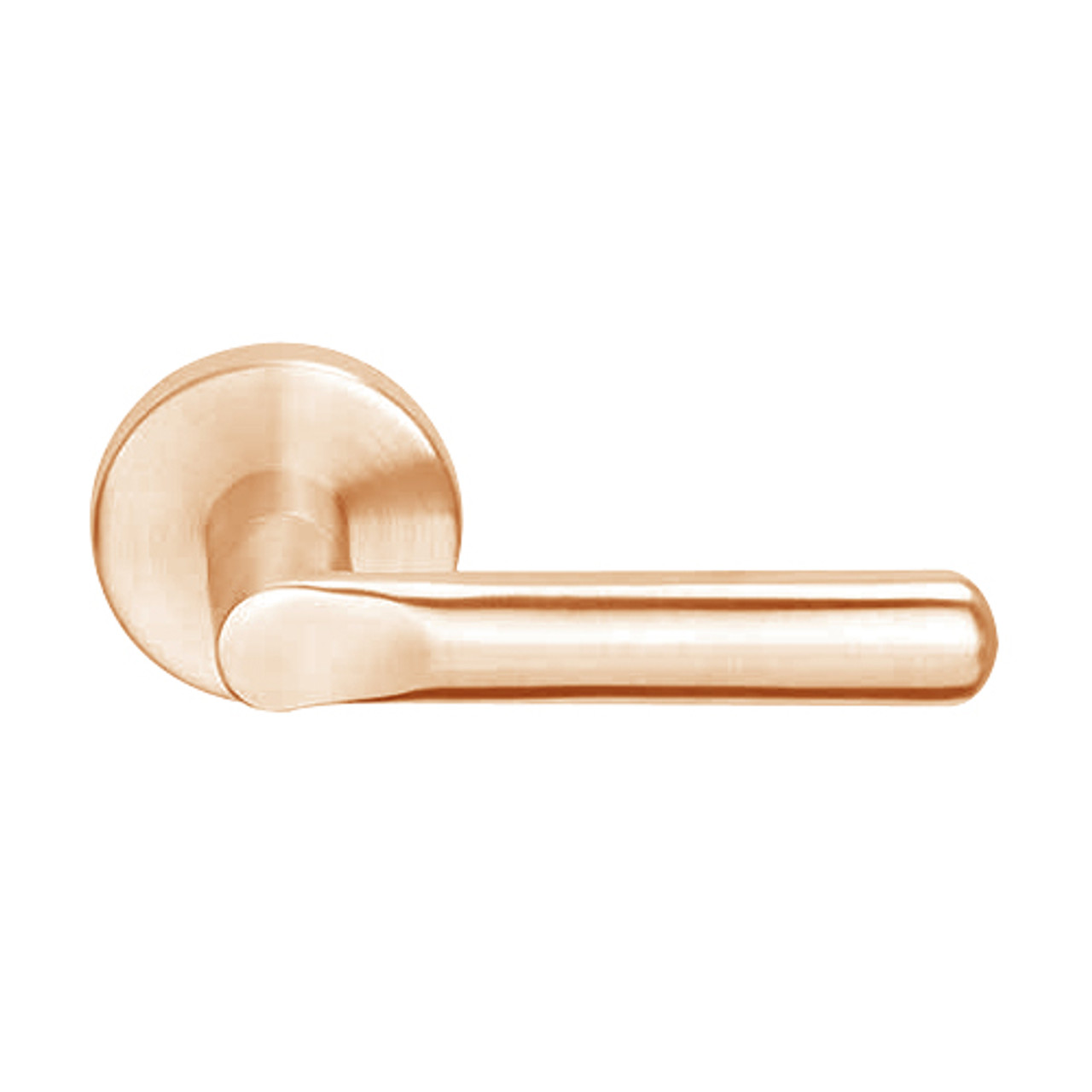

| Lever Design | 18 | 18 lever design |
| Rose / Escutcheon | A | A rose (standard round sectional rose, 2-1/8 in) |
| Finish | 612 | Satin Bronze (US10) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | L9480P-18A-612 |
| Brand | Schlage (Allegion) |
| Series | Schlage L Series |
| Product Type | Grade 1 Commercial Mortise Lock |
| Function | Storeroom Lock with Deadbolt |
| ANSI/BHMA Grade | ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security) |
| Mount Type | Mortise |
| Lever Design | 18 — 18 lever design |
| Trim / Rose | A — A rose (standard round sectional rose, 2-1/8 in) |
| Finish | 612 — Satin Bronze (US10) |
| Backset | 2-3/4 in (70 mm) only |
| Door Thickness | 1-3/4 in (44 mm) standard; 1-3/8 in (35 mm) optional; over 1-3/4 in specify thickness and position (EE/EI/EO/ED) |
| Lock Case Size | 4-7/16 in x 6-1/16 in x 1 in (113 x 154 x 25 mm) |
| Armor Front | 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional |
| Latchbolt | 3/4 in (19 mm) throw stainless steel latch with anti-friction tongue |
| Deadbolt | 1 in (25 mm) throw stainless steel deadbolt (deadbolt functions only) |
| Strike | ANSI curved-lip strike 1-1/4 in x 4-7/8 in (32 x 124 mm) with dust box; extended-lip options available |
| Cylinder | 6-pin conventional mortise cylinder (standard); also concealed mortise, FSIC, SFIC, and 7-pin SL formats plus less-cylinder |
| Keys Included | Two nickel-silver cut keys per lock (keyed functions) |
| Keyway | Patented Everest 29 S123 (standard); open, restricted, and Primus XP security levels available |
| Handing (field) | Field-reversible without disassembly (L9000); handed functions specify handing for indicator/keyed orientation |
| Material | Forged brass and cast stainless steel trim; stainless steel latch and deadbolt |
| Fire Rating | UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077) |
| Warranty | 10-year limited mechanical warranty |
| Lock Depot Price | $993.00 |
| MSRP (List) | $1655.00 |
Compliance & Codes
ANSI/BHMA A156.13-2017, Series 1000, Grade 1 (Operational and Security). UL 10C and CAN/ULC-S104 3-hour fire door (except holdback functions L9076/L9077). Complies with ICC A117.1; ADA-compliant lever return-to-door of 1/2 in or less meets CA Fire Code. Miami-Dade NOA and Florida Building Commission listed; Texas DOI (impact and non-impact); BAA compliant.
What's in the Box
Complete L9000 mortise lock case with deadbolt, 6-pin conventional mortise cylinder with two nickel-silver cut keys, latch with deadlocking auxiliary latch, armor front, ANSI strike with dust box, inside thumbturn, lever trim and roses/escutcheons as specified, and mounting hardware.
Pro-Installer FAQ
Q: What backset and door prep does the L9480P-18A-612 need?
A: All L9000 mortise locks use a single 2-3/4 in backset and the standard L-series mortise pocket. Standard door thickness is 1-3/4 in (1-3/8 in optional); over 1-3/4 in, specify thickness and position EE/EI/EO/ED. The armor front is 1-1/4 in x 8 in x 7/32 in (32 x 203 x 6 mm) standard; 1-1/16 in x 8 in optional.
Q: Is the L9480P-18A-612 fire rated, and is it handed?
A: Yes — UL 10C / ULC-S104 Listed for 3-hour fire doors. L9000 trim is field-reversible without disassembly, so it adapts to either hand on site.
Q: What cylinder and keyway does it use?
A: 6-pin conventional mortise cylinder, patented Everest 29 S123 keyway, two nickel-silver cut keys included. It also accepts concealed mortise, FSIC, SFIC, 7-pin SL, and Primus XP formats — match the keyway to your existing system.
