Product Description
The Sargent LC-8205-LNW-32D is a 8200 Series Entry/Office mortise lock in Satin Stainless (US32D/630). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside.
| SKU Breakdown: LC-8205-LNW-32D | |
| LC | Less cylinder |
| 8205 | Series 8200, Entry/Office function |
| LNW | Trim/lever design: LNW Lever Trim |
| 32D | Finish: Satin Stainless |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8205-LNW-32D |
| Series | Sargent 8200 |
| Function | Entry/Office |
| Trim / Lever | LNW Lever Trim |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Entry/Office function — Key locks and unlocks the outside lever. Inside lever is always free for exit.
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway (this is the LC- less-cylinder configuration).
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

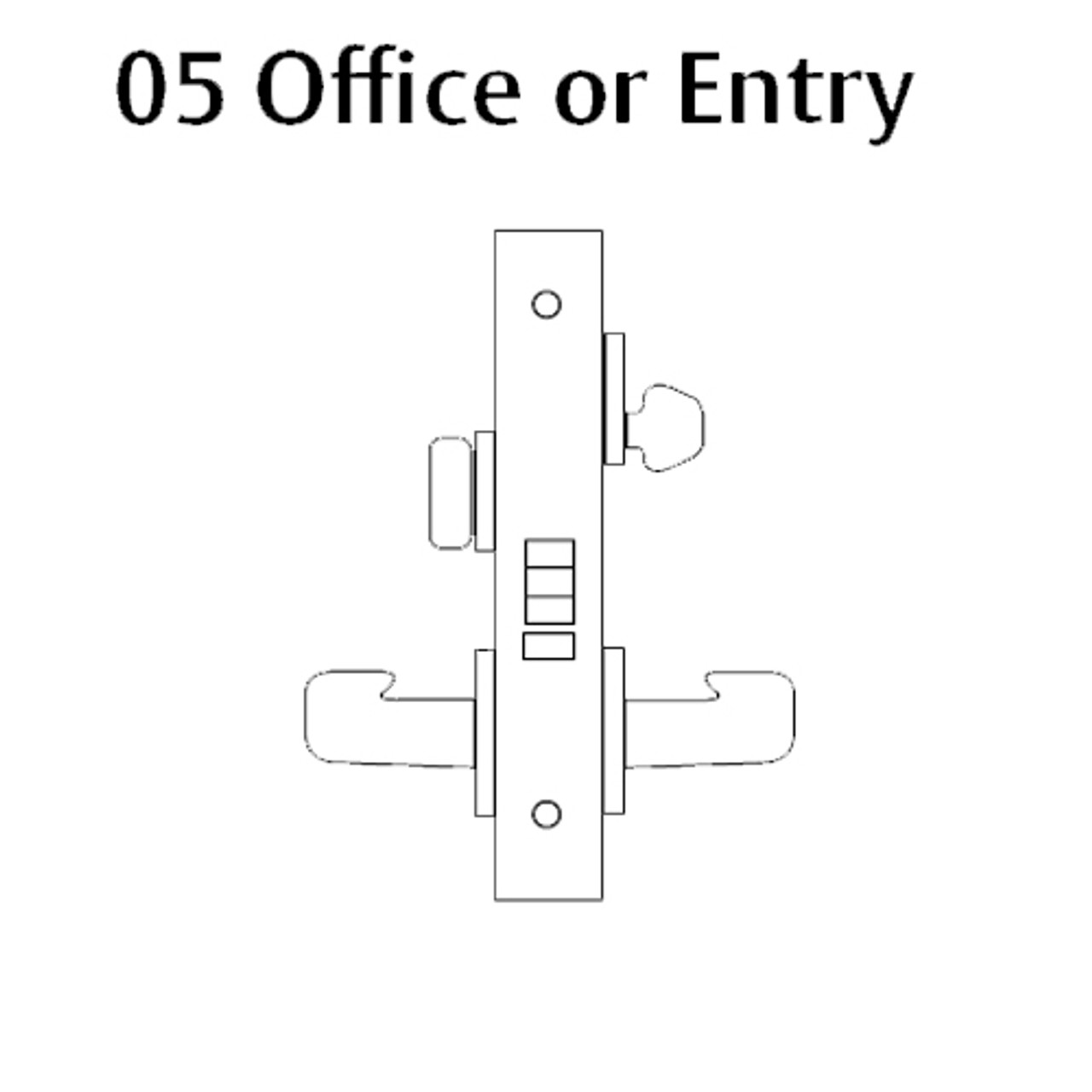

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Entry/Office
Series 8200
Finish Satin Stainless
Trim Lever
Mount Type Mortise
Cylinder Less Cylinder
