Product Description
The Sargent LC-8224-LE1L-BSP is a 8200 Series Hotel Guest mortise lock in Black Suede (BSP). Guest key overrides deadbolt. Emergency and construction master keys available.
| SKU Breakdown: LC-8224-LE1L-BSP | |
| LC | Less cylinder |
| 8224 | Series 8200, Hotel Guest function |
| LE1L | Trim code: LE1L |
| BSP | Finish: Black Suede |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8224-LE1L-BSP |
| Series | Sargent 8200 |
| Function | Hotel Guest |
| Finish | Black Suede (BSP) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Hotel Guest function — Guest key overrides deadbolt. Emergency and construction master keys available.
- Black Suede (BSP) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway (this is the LC- less-cylinder configuration).
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

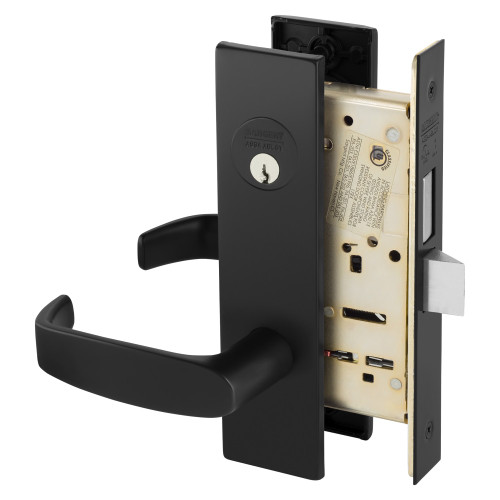

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Series 8200
Finish Black Suede
Trim LE1 Escutcheon, L Lever
Cylinder Less Cylinder
Mount Type Mortise
Fire Rated Fire Rated
Function Room Door
