Product Description

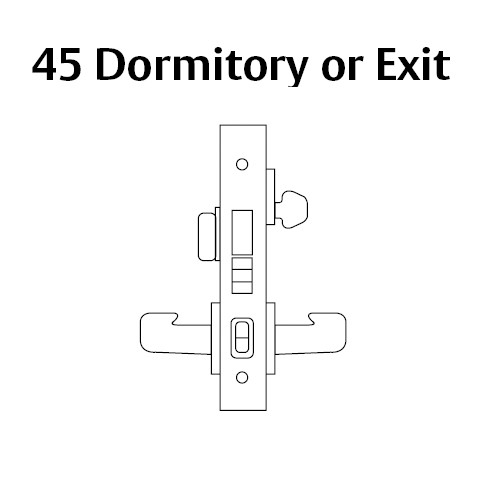

The Sargent LC-8245-LNJ-03 is a 8200 Series Dormitory mortise lock in Bright Brass (US3/605). Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free.
| SKU Breakdown: LC-8245-LNJ-03 | |
| LC | Less cylinder |
| 8245 | Series 8200, Dormitory function |
| LNJ | Trim/lever design: LNJ Lever Trim |
| 03 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8245-LNJ-03 |
| Series | Sargent 8200 |
| Function | Dormitory |
| Trim / Lever | LNJ Lever Trim |
| Finish | Bright Brass (US3/605) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Dormitory function — Outside lever locked by inside thumbturn, unlocked by key from outside.
- Bright Brass (US3/605) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway (this is the LC- less-cylinder configuration).
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Dormitory
Series 8200
Finish Bright Brass
Trim Lever
Mount Type Mortise
Cylinder Less Cylinder
