Product Description
The Sargent LC-8271-24V-LNL-26D is a 8200 Series Fail Secure mortise lock in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8271-24V-LNL-26D | |
| LC | Interchangeable Core prep |
| 8271 | Series 8200, Classroom Security function |
| 24V | Trim/lever design: LN Rose, L Lever |
| LNL | Finish: Satin Chrome |
| 26D | Configuration modifier |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8271-24V-LNL-26D |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Trim / Lever | LN Rose, L Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Secure function — Remains locked on power loss. Key override always available.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

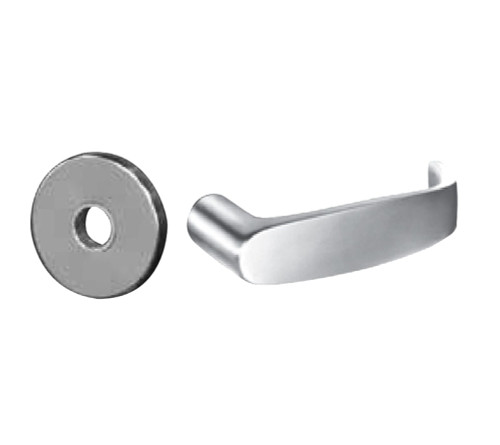

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
