Product Description

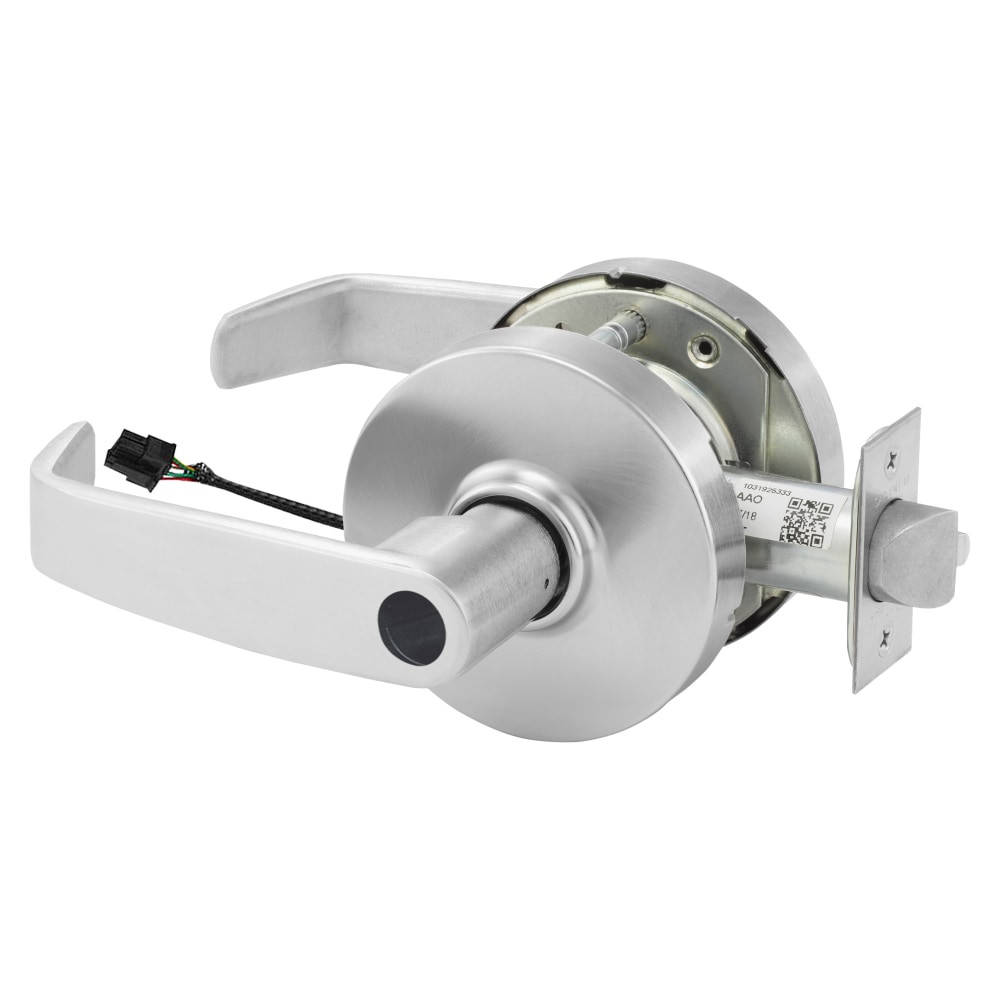

The Sargent LCRX-10XG71-LL-26D is a 10X Line cylindrical lock with Fail Secure function in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a Sargent lever cylinder separately to match your existing keyway.
| SKU Breakdown: LCRX-10XG71-LL-26D | |
| LCRX | Less cylinder + request-to-exit switch (monitors inside lever) |
| 10XG71 | Series and Fail Secure function |
| LL | Lever/rose design: LL |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LCRX-10XG71-LL-26D |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Less Cylinder |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited (mechanical), 2-Year Limited (electronics) |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Secure function for commercial access control
- Satin Chrome (US26D/626) finish
Works With: Compatible with Sargent conventional cylinders.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mechanical components of cylindrical locks and a 2-year limited warranty on electronic components, covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Fail Secure
Series 10X
Finish Satin Chrome
Trim L Rose, L Lever
Cylinder Less Cylinder
Mount Type Cylindrical
Mode Fail Secure
