Product Description

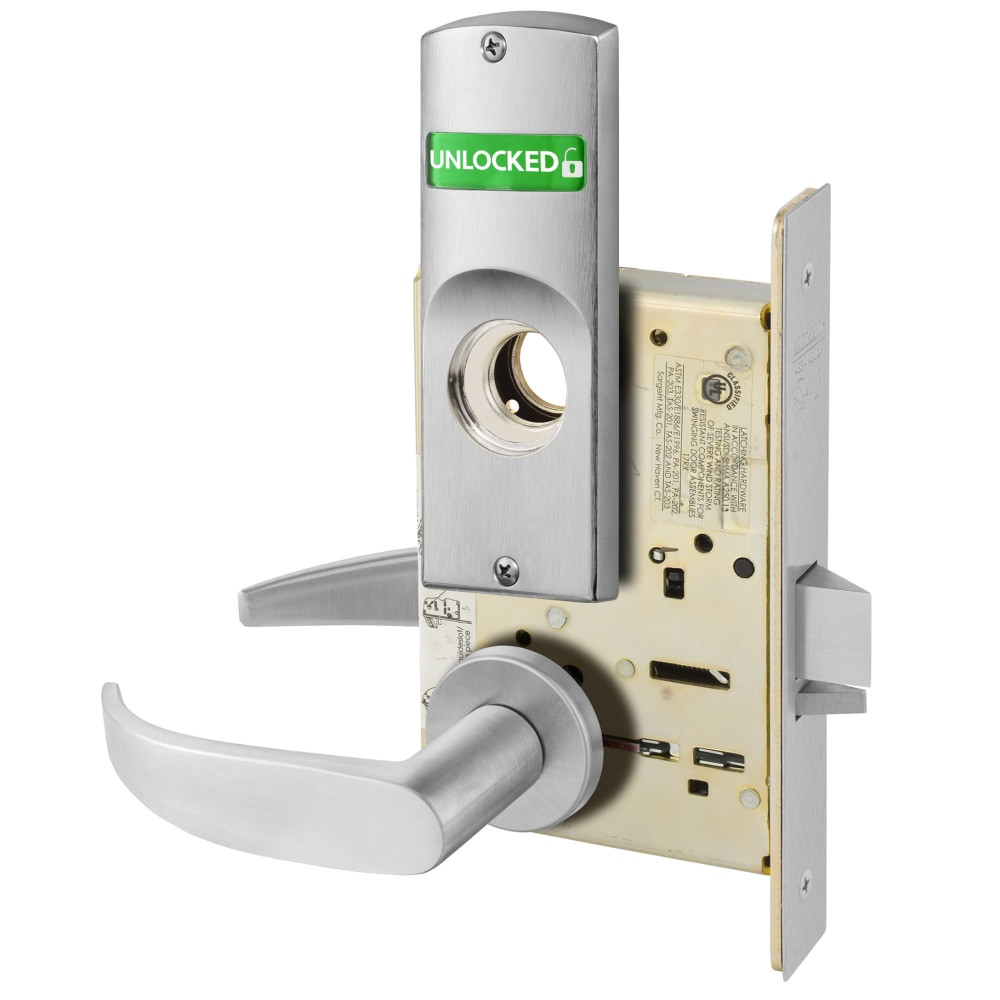

The Sargent LCV10-8237-LNP-26D is a 8200 Series Classroom mortise lock in Satin Chrome (US26D/626). Outside lever locked until unlocked by key, relocks automatically when door closes. Inside always free.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: LCV10-8237-LNP-26D | |
| LCV10 | Less cylinder + V10 indicator |
| 8237 | Series 8200, Classroom function |
| LNP | Trim code: LNP |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LCV10-8237-LNP-26D |
| Series | Sargent 8200 |
| Function | Classroom |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Classroom
Finish Satin Chrome
Trim LN Rose, P Lever
Cylinder Less Cylinder
Mount Type Mortise
Fire Rated Fire Rated
