Product Description

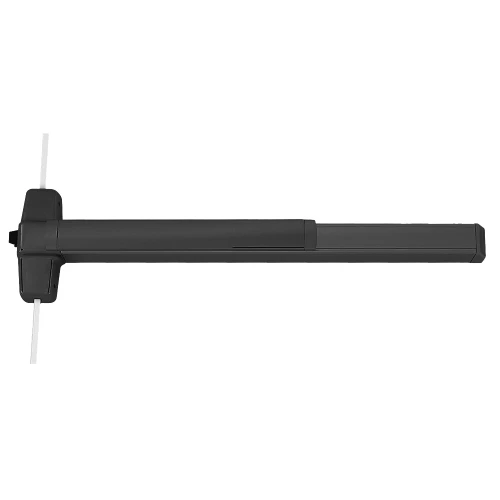

LD9857L-DT-06 4 315 LHR Von Duprin 98 Series Dummy Trim Surface Three Point Latch Exit Device in Black
The LD9857L-DT-06 4 315 LHR is a Von Duprin 9857 Series Surface Three Point Latch exit device with L-06 Lever trim in Black (315/315), sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9857 three-point latch device provides three engagement points — rim latch plus top and bottom bolts. This is your go-to for high-security applications or large doors where a single latch point isn't enough to keep the door sealed. Popular on data centers and clean rooms.
| Specifications | |
|---|---|
| Part Number | LD9857L-DT-06 4 315 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9857 |
| Function | Dummy Trim |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Black (315/315) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 9857 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-06 Lever trim — pull operation from outside
- Black finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
