Product Description

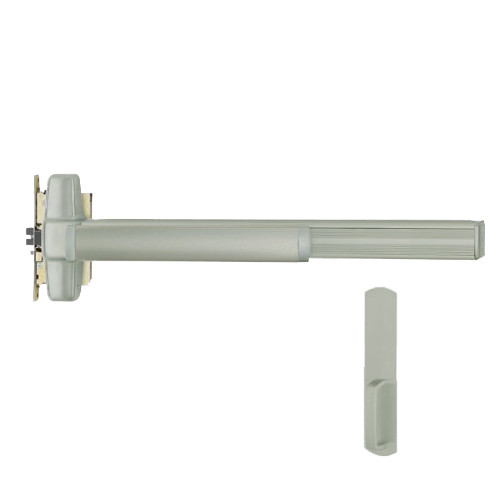

LD9875DT-US15-4 Von Duprin Dummy Trim Mortise Lock Exit Device Less Dogging in Satin Nickel
| Part Number Breakdown: LD9875DT-US15-4 | |
|---|---|
| 9875 | 9875 Series Mortise Lock Exit Device |
| LD | Latch Detector |
| DT | Dummy Trim |
| US15 | Satin Nickel (BHMA 619) |
| 4 | 4 Foot Door |
The LD9875DT-US15-4 is a Von Duprin 9875 Series Mortise Lock exit device with Latch Detector (LD) and Dummy Trim trim in Satin Nickel, sized for 4 Foot doors. Dummy Trim — non-functioning outside trim for appearance only. Used on the inactive leaf of a pair of doors. No cylinder required.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard.
Pro-Tip from Our Locksmiths: Dummy trim with Latch Detector on the inactive leaf — the LD still monitors this leaf's latch status and reports to the access panel. Always match the finish to the active leaf for a uniform pair.
| Specifications | |
|---|---|
| Part Number | LD9875DT-US15-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Nickel (US15/619) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series Mortise Lock exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Mortise Lock (mortise body recessed into door edge)
- Satin Nickel finish
- Hex key dogging standard — hold latch retracted during business hours
Cross-Reference: The LD9875 is the 9875 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 9875 — with the addition of latch bolt position monitoring for access control integration.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
