Product Description
LD98EO-US3-3 Von Duprin Exit Only Rim Device Less Dogging in Bright Brass
| Part Number Breakdown: LD98EO-US3-3 | |
|---|---|
| 98 | 98 Series Rim Exit Device |
| LD | Latch Detector |
| US3 | Bright Brass (BHMA 605) |
| 3 | 3 Foot Door |
The LD98EO-US3-3 is a Von Duprin 98 Series Rim exit device with Latch Detector (LD) in Bright Brass, sized for 3 Foot doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard.
Pro-Tip from Our Locksmiths: The LD (Latch Detector) on this 98 Series device monitors the latch bolt position and reports it back to the access control panel — so you always know if the door is actually latched and secure. Common spec for schools, hospitals, and any building where you need positive confirmation that the door is locked down.
| Specifications | |
|---|---|
| Part Number | LD98EO-US3-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Brass (US3/605) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 98 Series Rim exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Bright Brass finish
- Hex key dogging standard — hold latch retracted during business hours
Cross-Reference: The LD98 is the 98 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 98 — with the addition of latch bolt position monitoring for access control integration.
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

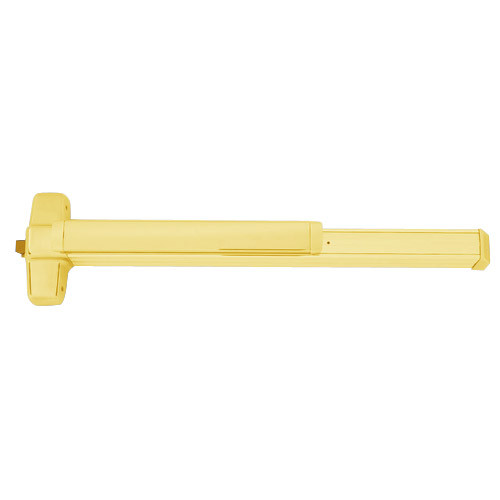

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
