Product Description
LD9947L-KC-18 4 313 RHR Von Duprin 99 Series Key Capture Concealed Vertical Rod Exit Device in Duranodic Dark Bronze
The LD9947L-KC-18 4 313 RHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device with L-18 Lever trim in Duranodic Dark Bronze (313/313), sized for 4' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When troubleshooting a 9947/9947WDC that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | LD9947L-KC-18 4 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Key Capture |
| Lever Design | L-18 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-18 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

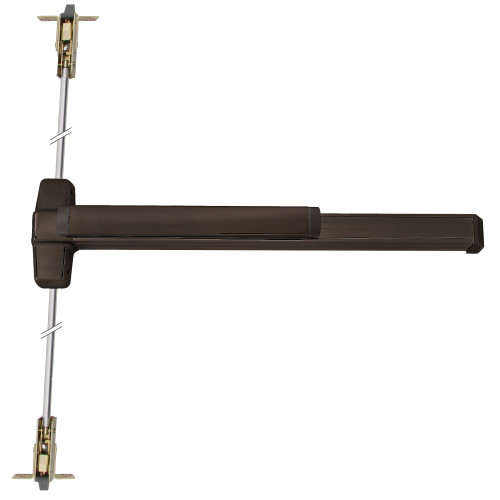

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
