Product Description
LD9947L-NL-01 3 US28 RHR Von Duprin 99 Series Night Latch Concealed Vertical Rod Exit Device in Anodized Aluminum
The LD9947L-NL-01 3 US28 RHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device with L-01 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When troubleshooting a 9947/9947WDC that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | LD9947L-NL-01 3 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Night Latch |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-01 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

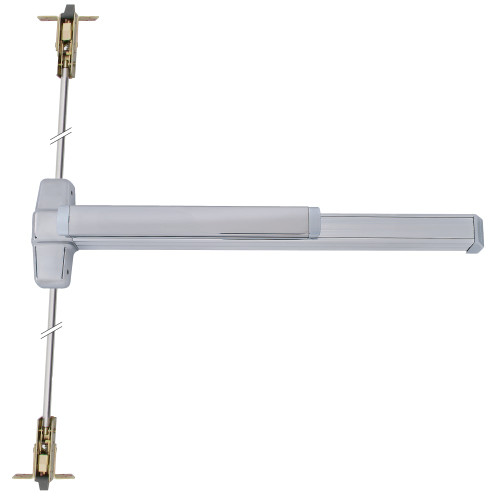

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
