Product Description

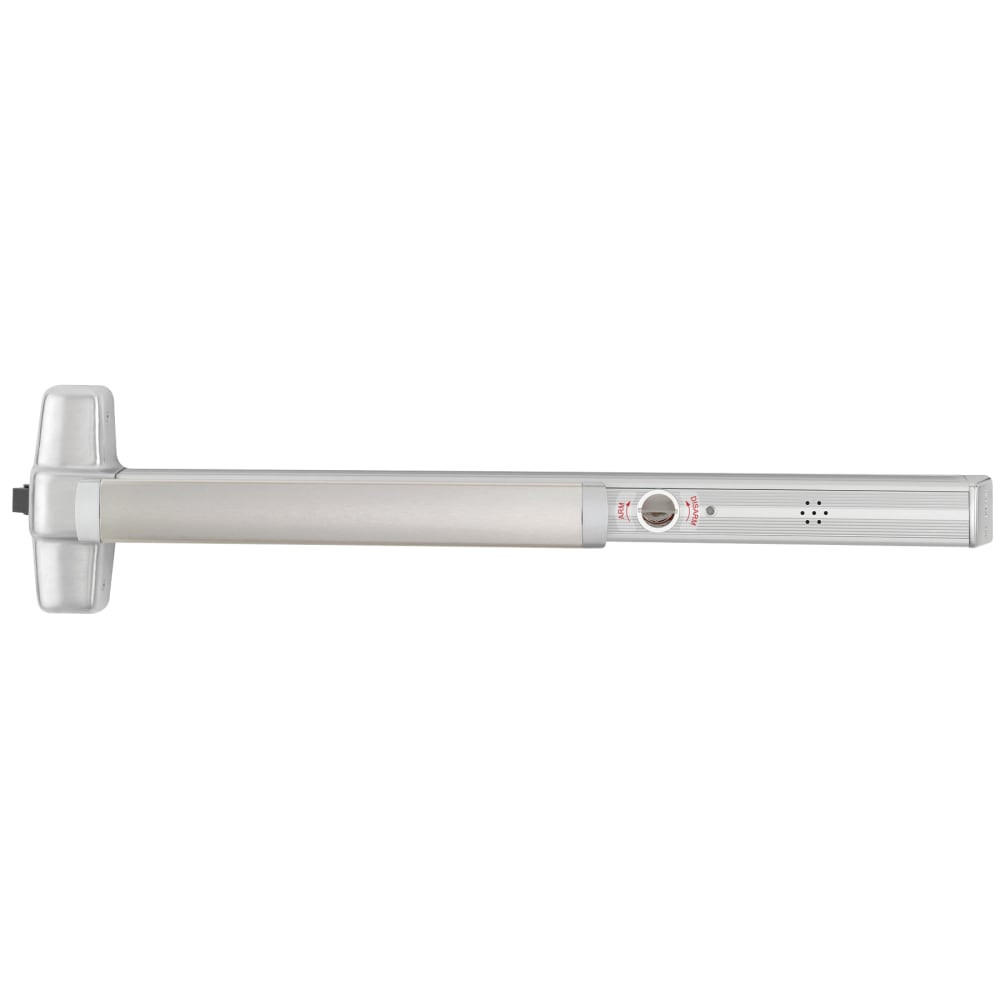

LD99EO 3 26D ALK Von Duprin Latch Retraction (LD) 99 Series Exit Only Surface Vertical Rod Exit Device Satin Chrome
The LD99EO 3 26D ALK is a Von Duprin 99 Series Rim exit device in Satin Chrome (US26D/626), sized for 3' doors. Alarm Kit — audible alarm sounds when the exit device is activated. Deters unauthorized egress. No cylinder required.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 99 series rim exit device is your fastest retrofit option. It mounts entirely on the inside surface of the door with no door prep required. On apartment buildings and rental properties where you can't modify the door, specify a rim device.
| Specifications | |
|---|---|
| Part Number | LD99EO 3 26D ALK |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Alarm Kit |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Chrome (US26D/626) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Chrome finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
- Hex key dogging standard — hold latch retracted during business hours
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
