Product Description

ML2069-DSR-629-LH Corbin Russwin ML2000 Series Mortise Institution Privacy Locksets with Dirke Lever in Bright Stainless Steel Finish

The Corbin ML2069-DSR-629-LH institution privacy function lock is designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Further discourage intrusion and abuse with the ML2000HS (High Security) or ML2000VR (Vandal Resistant) series mortise lock. Both locks feature vandal resistant stainless steel escutcheons with tapered edges and Torx pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders. The ML2000 series is ideal for offices, schools, hospitals, hotels and other high-use applications. This series are certified to ANSI/BHMA A156.13 Series 1000, operational and security Grade 1.

Institution privacy: Latchbolt by grip either side, except when outside is locked by thumbturn inside. Key outside retracts latch at all times, even if thumbturn is held in locked position.

Features and Benefits:

• Bright Stainless Steel finish
• Strike: ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
• Latch bolt: 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
• Backset: 2-3/4"
• Handing: Left handed
• Single cylinder
• 6-pin cylinder, L4 keyway standard
• Two nickel silver keys are included

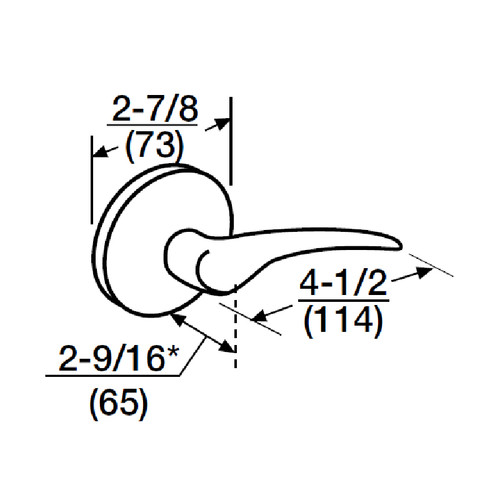

• Dirke lever trim (DSR)
• Lever: Cast; Escutcheon: Solid stainless steel; forged brass
• Escutcheon: R Escutcheon 1-3/4"
• Door thickness: 1-3/4" (44mm) standard
• Lockcase: Heavy-gauge steel, 5-7/8"x4"x15/16"
