ND10S-OME-605 Schlage ND Series - Omega Style Lock with Passage Latch in Bright Brass Finish
The Schlage ND10S-OME-605 series of Omega heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building's design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.
Features and Benefits:
- Bright Brass finish
- Omega (OME) Lever
- Very easy installation
- Pressure cast zinc lever; wrought brass rose construction material
- ANSI: F75

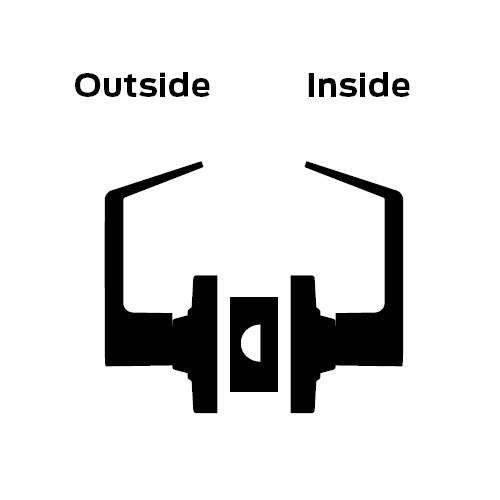

- Passage latch: Both levers always unlocked
- Inside lever always free for immediate egress
- Backset: 2-3/4"(70mm) standard
- Rose Diameter: 3-7/16"
- Projection: 3-5/16"
- Lever Length: 5-1/16"
- Door Thickness: 1-5/8" - 2-1/8" (41mm - 54mm) standard
- UL listed hardware for up to three-hour fire door
- Strike: 1-1/4" x 4-7/8" ANSI type
- ANSI/BHMA A156.2-2011, series 4000 Grade 1 certified
- Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
