Product Description
ND12DEL-RHO-605 Schlage ND Series Cylindrical Lever Lock — Exit Lock, Electrically Locked (Fail Safe), Rhodes Lever, Bright Brass
Some doors have to open from outside the moment the power drops. The ND12 in EL mode does that. With power on, the outside lever stays locked. Take the power away, by a switch or an outage, and either lever pulls the latch. The inside lever is always free. There is no key on this function.

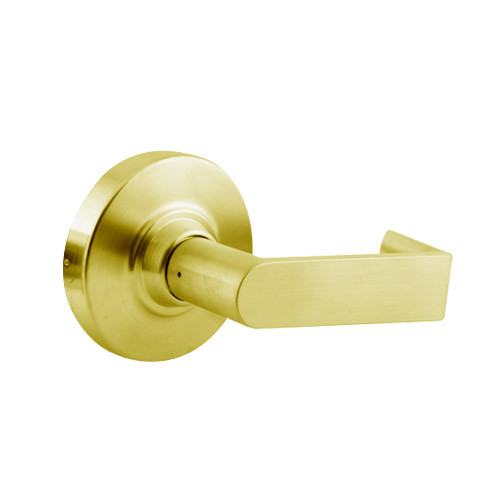

This one is the Rhodes lever on the Rhodes rose, in Bright Brass. The latch is a deadlatch. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ND | Schlage ND Series, a Grade 1 cylindrical lever lock |
| Function | 12EL | Exit Lock, Electrically Locked (Fail Safe): power on, outside lever locked; power off, either lever pulls the latch |
| Latch | D | Deadlatch |
| Lever | RHO | Rhodes lever on the Rhodes rose |
| Finish | 605 | Bright Brass (US3) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ND12DEL-RHO-605 |
| Series | Schlage ND Series |
| Function | Exit Lock, Electrically Locked (Fail Safe) |
| Lock grade | ANSI/BHMA A156.2-2011 Grade 1, Series 4000 |
| Lever | Rhodes, Grade 1 |
| Rose | Rhodes, 3-7/16" diameter |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-5/8" to 2-1/8" |
| Latch | Deadlatch, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI, 1-1/4" x 4-7/8", square corner, 1-3/16" lip, no box |
| Power | 12 or 24V DC, auto detect. Chassis switch sets EL or EU in the field |
| Handing | Non-handed |
| Finish | 605 / US3 Bright Brass |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1. UL Listed for 3-hour fire door.
What's in the Box
One complete lock: Rhodes levers and Rhodes roses, electrified chassis, deadlatch and ANSI strike. No cylinder and no key on this function.
Pro-Installer FAQ
Q: What happens when the power goes out?
A: The door unlocks. In EL mode, with no power, either lever retracts the latch. If the door has to stay locked with no power, you want the EU version, which is fail secure.
Q: What voltage does it run on?
A: 12 or 24 volts DC. It detects which by itself. A switch on the chassis sets EL or EU in the field.
Q: Is this a Grade 1 lock?
A: Yes. The ND Series is ANSI/BHMA Certified A156.2 Grade 1, Series 4000. If the job does not call for Grade 1, Schlage's ALX Series is the Grade 2 cylindrical line.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
