Product Description
ND40S-OME-613 Schlage ND Series Cylindrical Lever Lock — Bath/Bedroom Privacy Lock, Omega Lever, Oil Rubbed Bronze

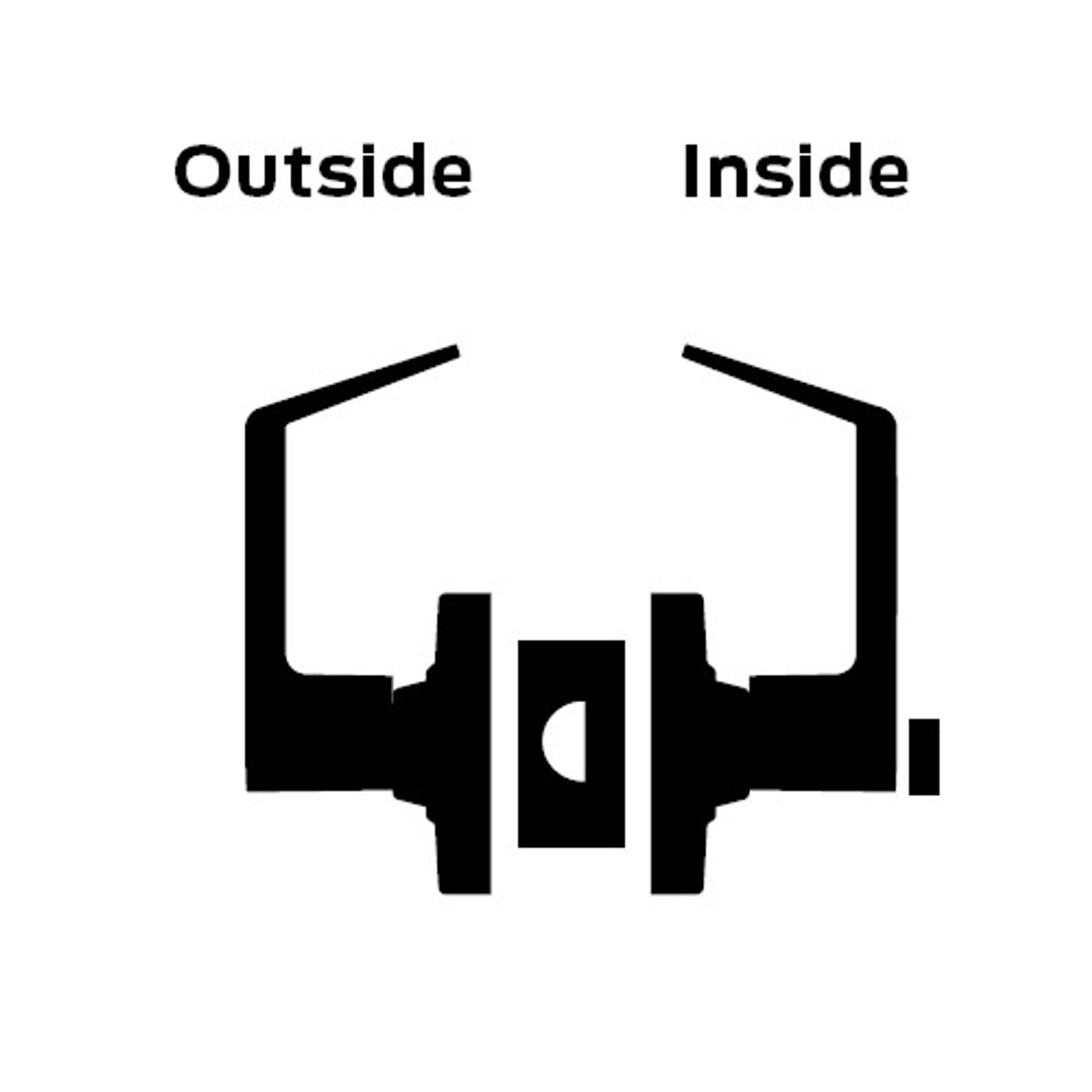

A bathroom door has two jobs. It has to lock from inside with one push, and somebody in the hall has to be able to get in if the person inside is in trouble. The ND40 does both. Push the button in the inside lever and the outside lever goes dead. Turn the inside lever or close the door and the button lets go, so nobody gets locked out by accident. From the hall, the slot in the outside lever is the way in.

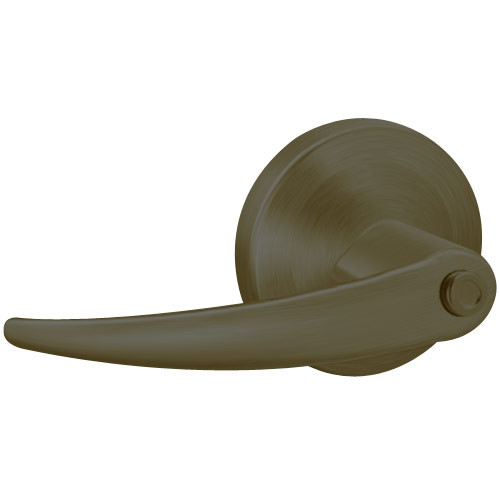

This one is the Omega lever on the Omega rose, in Oil Rubbed Bronze. The latch is a spring latch. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ND | Schlage ND Series, a Grade 1 cylindrical lever lock |
| Function | 40 | Bath/Bedroom Privacy Lock: push button inside locks the outside lever; emergency slot outside |
| Latch | S | Spring latch |
| Lever | OME | Omega lever on the Omega rose |
| Finish | 613 | Oil Rubbed Bronze (US10B) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ND40S-OME-613 |
| Series | Schlage ND Series |
| Function | Bath/Bedroom Privacy Lock, ANSI F76 |
| Lock grade | ANSI/BHMA A156.2-2011 Grade 1, Series 4000 |
| Lever | Omega, Grade 1 |
| Rose | Omega, 3-7/16" diameter |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-5/8" to 2-1/8" |
| Latch | Spring latch, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI, 1-1/4" x 4-7/8", square corner, 1-3/16" lip, no box |
| Handing | Non-handed |
| Finish | 613 / US10B Oil Rubbed Bronze |
| Warranty | 10-year limited |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1. UL Listed for 3-hour fire door. ANSI function F76.
What's in the Box
One complete lock: Omega levers and Omega roses, chassis, spring latch and ANSI strike. No cylinder and no key on this function.
Pro-Installer FAQ
Q: How do I open it from the hall in an emergency?
A: Put the emergency key or a small flat screwdriver in the slot in the outside lever and turn it. That releases the button. The emergency key is sold separately, Schlage part number 35-250.
Q: Can someone get locked out if the door shuts with the button pushed?
A: No. Closing the door releases the button and unlocks the outside lever. Turning the inside lever does the same.
Q: Is this a Grade 1 lock?
A: Yes. The ND Series is ANSI/BHMA Certified A156.2 Grade 1, Series 4000. If the job does not call for Grade 1, Schlage's ALX Series is the Grade 2 cylindrical line.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
