Product Description
ND80PDEL-ATH-612 Schlage ND Series Cylindrical Lever Lock — Storeroom Lock, Electrically Locked (Fail Safe), Athens Lever, Satin Bronze

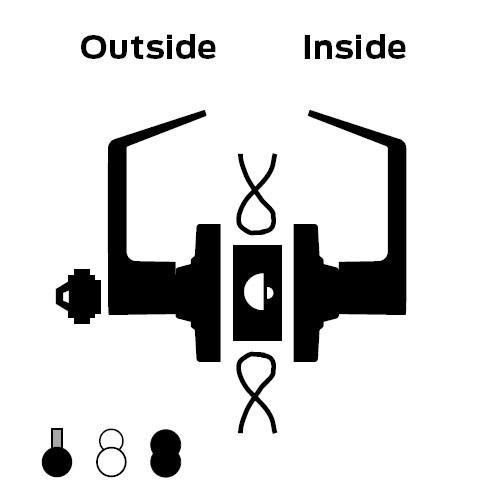

A storeroom on a controlled opening, where the door has to come open from outside when the power drops. With power on, the ND80 in EL mode keeps the outside lever locked. Take the power away, by a switch or an outage, and either lever pulls the latch. The key outside pulls the latch but does not change whether the lever is locked. The inside lever is always free.

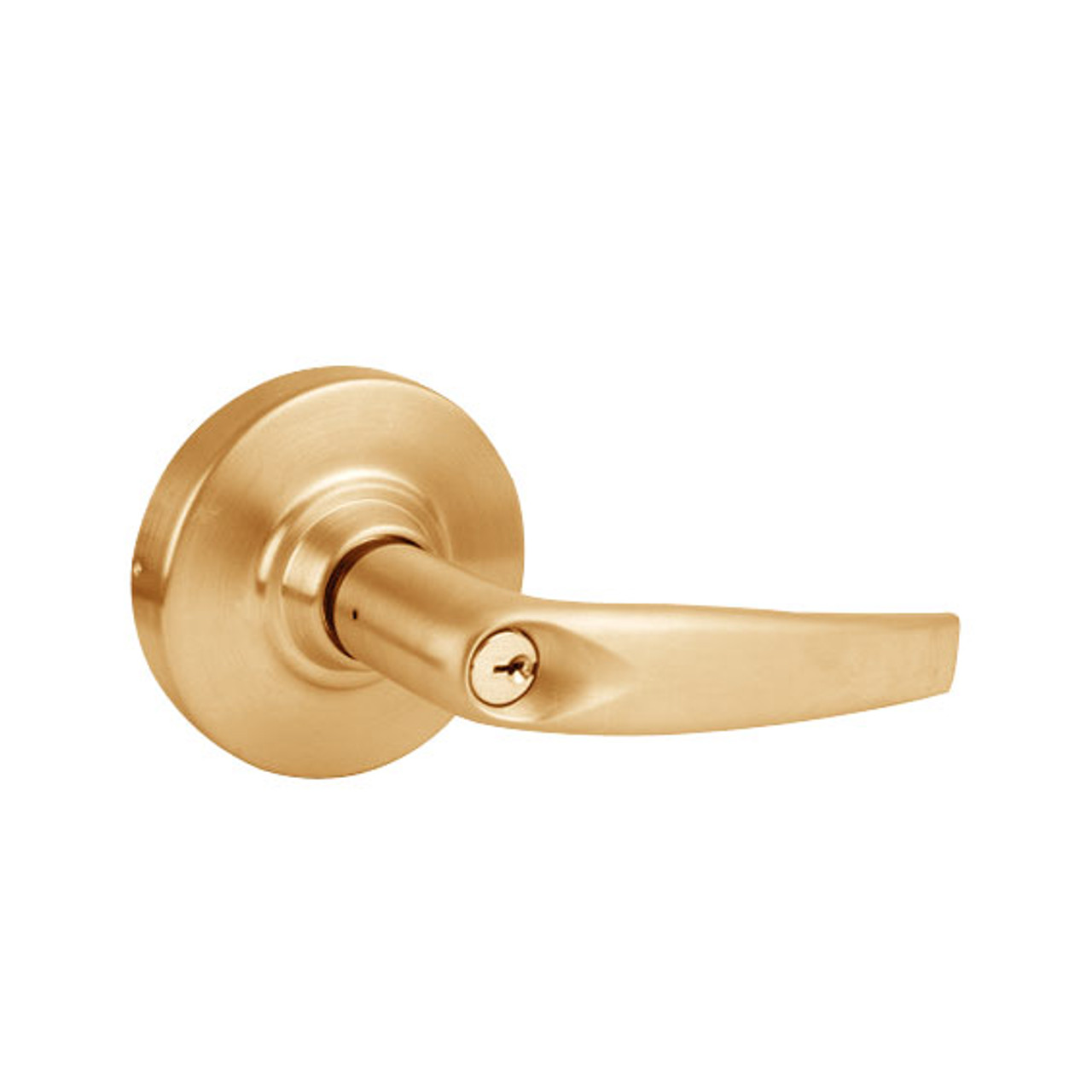

This one is the Athens lever on the Rhodes rose, with a conventional 6-pin cylinder keyed 5, in the Schlage C keyway, keyed different, in Satin Bronze. The latch is a deadlatch. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ND | Schlage ND Series, a Grade 1 cylindrical lever lock |
| Function | 80EL | Storeroom Lock, Electrically Locked (Fail Safe): power on, outside lever locked; power off, either lever pulls the latch |
| Cylinder | P | Conventional 6-pin cylinder, keyed 5, C keyway, keyed different |
| Latch | D | Deadlatch |
| Lever | ATH | Athens lever on the Rhodes rose |
| Finish | 612 | Satin Bronze (US10) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ND80PDEL-ATH-612 |
| Series | Schlage ND Series |
| Function | Storeroom Lock, Electrically Locked (Fail Safe) |
| Lock grade | ANSI/BHMA A156.2-2011 Grade 1, Series 4000 |
| Lever | Athens, Grade 1 |
| Rose | Rhodes, 3-7/16" diameter |
| Cylinder | 6-pin solid brass, keyed 5 |
| Keyway | Schlage C, keyed different |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-5/8" to 2-1/8" |
| Latch | Deadlatch, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI, 1-1/4" x 4-7/8", square corner, 1-3/16" lip, no box |
| Power | 12 or 24V DC, auto detect. Chassis switch sets EL or EU in the field |
| Handing | Non-handed |
| Finish | 612 / US10 Satin Bronze |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1. UL Listed for 3-hour fire door.
What's in the Box
One complete lock: Athens levers and Rhodes roses, electrified chassis, deadlatch, ANSI strike, 6-pin cylinder and cut keys. Control keys are not furnished with the lock.
Pro-Installer FAQ
Q: What happens when the power goes out?
A: The door unlocks. In EL mode, with no power, either lever retracts the latch. If the door has to stay locked with no power, you want the EU version, which is fail secure.
Q: What voltage does it run on?
A: 12 or 24 volts DC. It detects which by itself. A switch on the chassis sets EL or EU in the field.
Q: Will this key into my building's system?
A: Only if your building runs the Schlage C keyway. It ships keyed different, not master keyed. Schlage's default on most ND orders is Everest 29 S123, and that is a different key, so check which one you have before you order.
Q: Is this a Grade 1 lock?
A: Yes. The ND Series is ANSI/BHMA Certified A156.2 Grade 1, Series 4000. If the job does not call for Grade 1, Schlage's ALX Series is the Grade 2 cylindrical line.
