Product Description
ND82PD-SPA-626 Schlage ND Series Cylindrical Lever Lock — Institution Lock, Sparta Lever, Satin Chrome

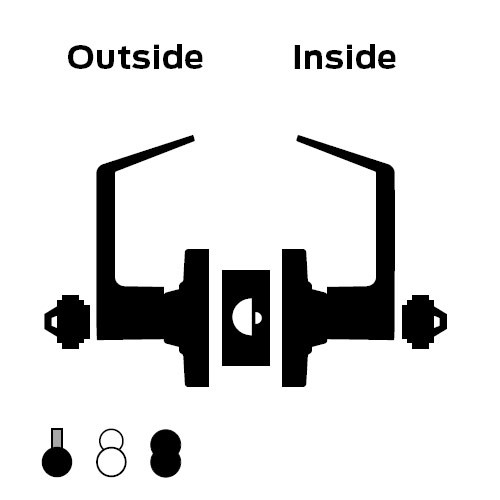

Some doors nobody goes through without a key, from either side. The ND82 has a cylinder in both levers and both levers are always fixed. The key in either lever pulls the latch for that one trip. There is no free side on this lock, so read the caution below before it goes on a door people leave by.
This one is the Sparta lever on the Rhodes rose, with two conventional 6-pin cylinders keyed 5, in the Schlage C keyway, keyed different, in Satin Chrome. The latch is a deadlatch. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ND | Schlage ND Series, a Grade 1 cylindrical lever lock |
| Function | 82 | Institution Lock: both levers always fixed; key in either lever retracts the latch |
| Cylinder | P | Two conventional 6-pin cylinders, keyed 5, C keyway, keyed different |
| Latch | D | Deadlatch |
| Lever | SPA | Sparta lever on the Rhodes rose |
| Finish | 626 | Satin Chrome (US26D) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ND82PD-SPA-626 |
| Series | Schlage ND Series |
| Function | Institution Lock, ANSI F87 |
| Lock grade | ANSI/BHMA A156.2-2011 Grade 1, Series 4000 |
| Lever | Sparta, Grade 1 |
| Rose | Rhodes, 3-7/16" diameter |
| Cylinder | Two 6-pin solid brass, keyed 5 |
| Keyway | Schlage C, keyed different |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-5/8" to 2-1/8" |
| Latch | Deadlatch, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI, 1-1/4" x 4-7/8", square corner, 1-3/16" lip, no box |
| Handing | Non-handed |
| Finish | 626 / US26D Satin Chrome |
| Warranty | 10-year limited |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1. UL Listed for 3-hour fire door. ANSI function F87. Schlage's caution on double cylinder locks: on a door used for egress they are a life safety hazard in an emergency and their use is not recommended. Install only where the code allows.
What's in the Box
One complete lock: Sparta levers and Rhodes roses, chassis, deadlatch, ANSI strike, two 6-pin cylinders and cut keys. Control keys are not furnished with the lock.
Pro-Installer FAQ
Q: Can somebody get out without a key?
A: No. Both levers are always fixed. Schlage's caution on double cylinder locks: on a door used for egress they are a life safety hazard in an emergency and their use is not recommended. Install only where the code allows.
Q: I want the inside lever free. What do I order?
A: The ND80 storeroom lock does the same thing outside and leaves the inside lever always free.
Q: Will this key into my building's system?
A: Only if your building runs the Schlage C keyway. It ships keyed different, not master keyed. Schlage's default on most ND orders is Everest 29 S123, and that is a different key, so check which one you have before you order.
Q: Is this a Grade 1 lock?
A: Yes. The ND Series is ANSI/BHMA Certified A156.2 Grade 1, Series 4000. If the job does not call for Grade 1, Schlage's ALX Series is the Grade 2 cylindrical line.
Lock Depot sells brand new Schlage products with the full manufacturer warranty.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
