Product Description

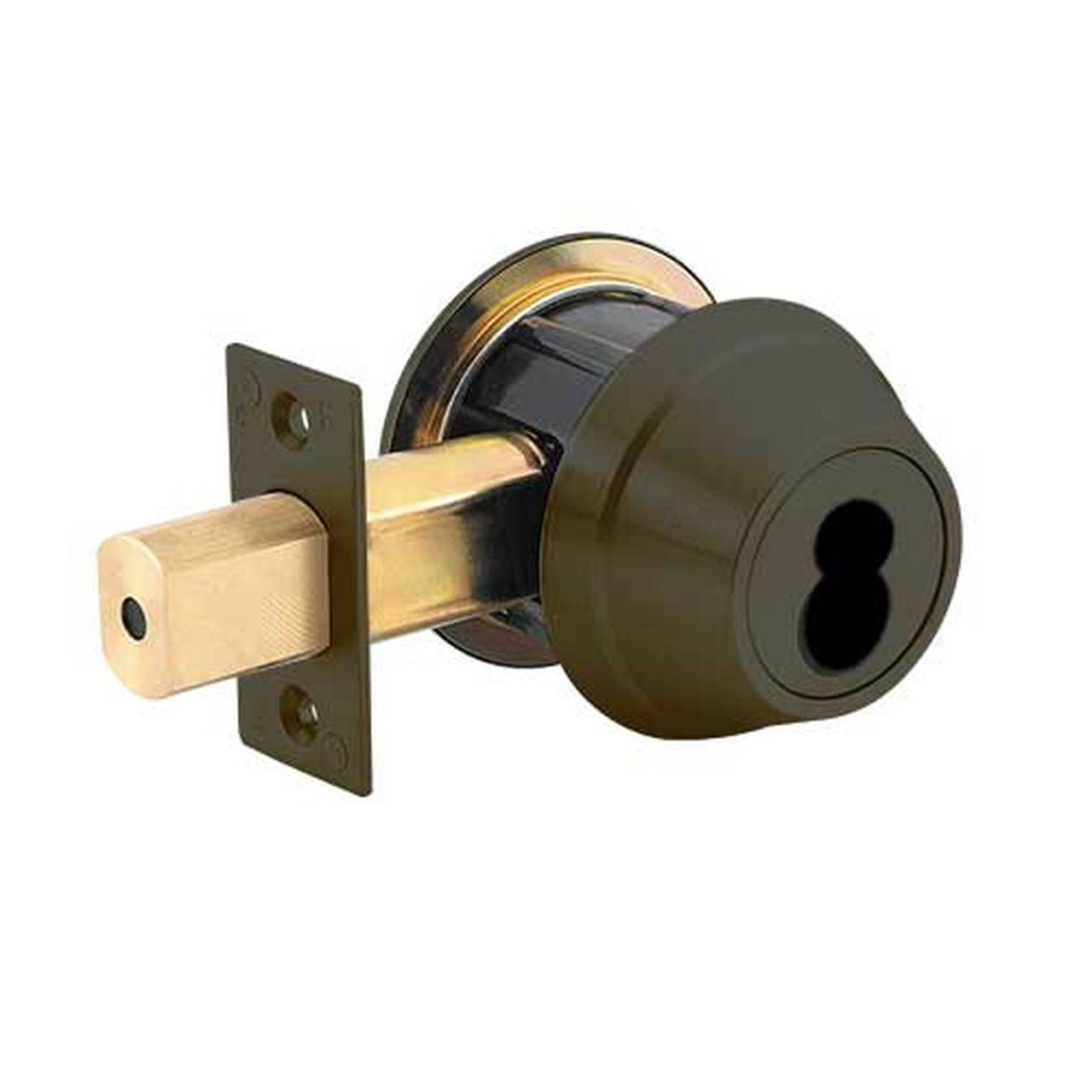

QDB283-613-R8-DBR-BF Stanley QDB200 Series Best "F" Keyway Double Cylinder Standard Duty Auxiliary Deadbolt Lock Prepped for SFIC in Oil Rubbed Bronze Finish

The Stanley QDB283-613-R8-DBR-BF commercial hardware QDB200 series provides strength, durability and reliability for high-security applications. This Deadbolt is designed for institutional, commercial use such as educational, health care and industrial facilities where long-lasting, highly sustainable products are required. The QDB200 Series is simple to order and install or retrofit in a wide variety of high-security applications. This Series deadbolt lock has been Certified to ANSI/BHMA A156.12 - 1999 Grade 2.

Features and Benefits:

• Oil Rubbed Bronze finish
• Handing: Non handed
• Double Cylinder
• Door range: 1-3/8" (35 mm) to 2" (51 mm)
• Backset: 2-3/4" (70mm) square standard
• Anti-drill design - Two (2) ball bearings inserted to prevent drill attacks
• Faceplate: 1-1/8" x 2-1/4" (29mm x 57mm)
• Keyway: Best "F" keyway
• Core is included
• Prepped with small format interchangeable core
• Latch: 2-3/8" deadbolt - radius corner
• Strike: 2-3/4" x 1-1/8" Standard Radius Deadbolt Strike and Reinforcer
• Tested to meet Grade 2 specification of 150,000 cycles
• Full 1" (25.4mm) throwbolt with saw-resistant hardened steel roller pin.
