Product Description

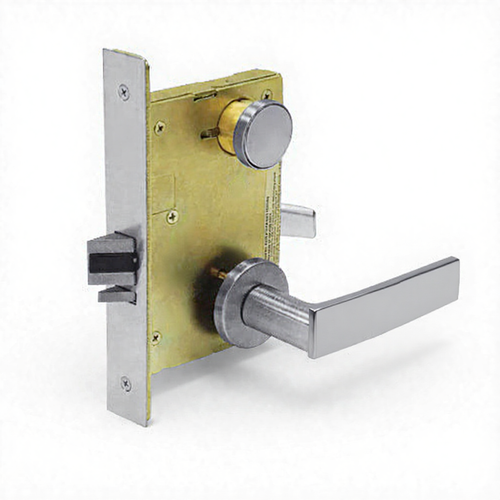

The Sargent RX-8270-24V-OP-26D is a 8200 Series Fail Safe mortise lock in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress.
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LC- less-cylinder variant of this part instead.
| SKU Breakdown: RX-8270-24V-OP-26D | |
| RX | Request to Exit monitoring |
| 8270 | Series 8200, Fail Safe function |
| 24V | Voltage: 24V |
| OP | Trim code: OP |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RX-8270-24V-OP-26D |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited (mechanical), 2-Year Limited (electromechanical) |
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Includes a standard conventional mortise cylinder (keyed) — order the LC- variant if you need it less cylinder.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mechanical components of mortise locks and a 2-year limited warranty on electromechanical components, covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Fail Safe
Series 8200
Finish Satin Chrome

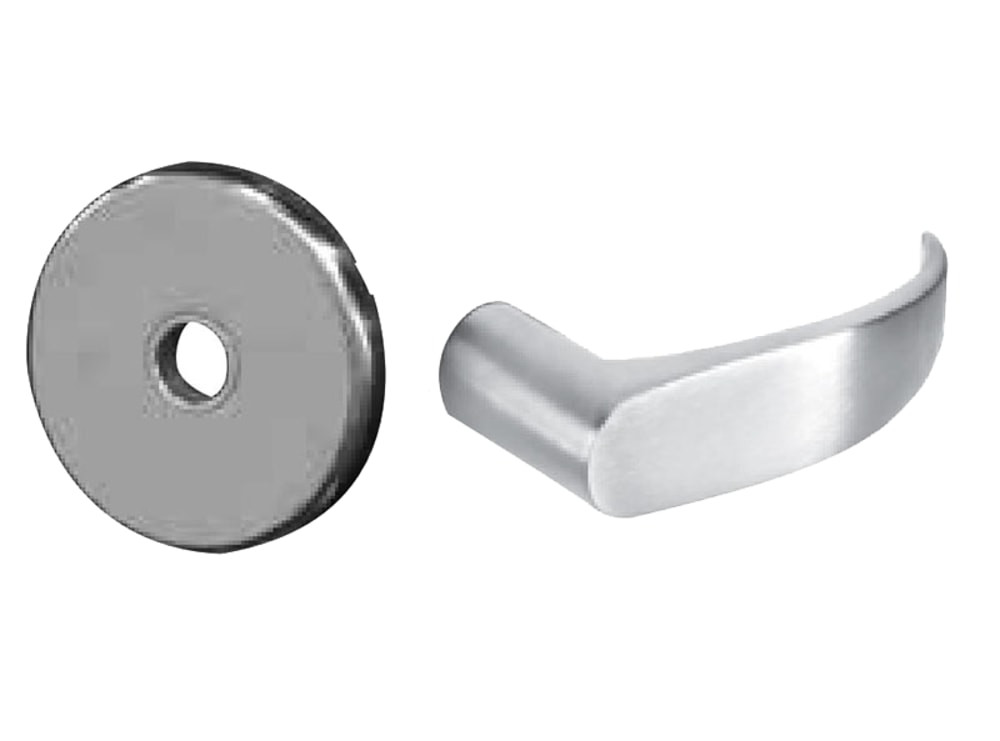

Trim O Rose, P Lever
Cylinder Standard Cylinder
Mount Type Mortise
Fire Rated Fire Rated
Voltage 24VDC
Mode Fail Safe
