Product Description

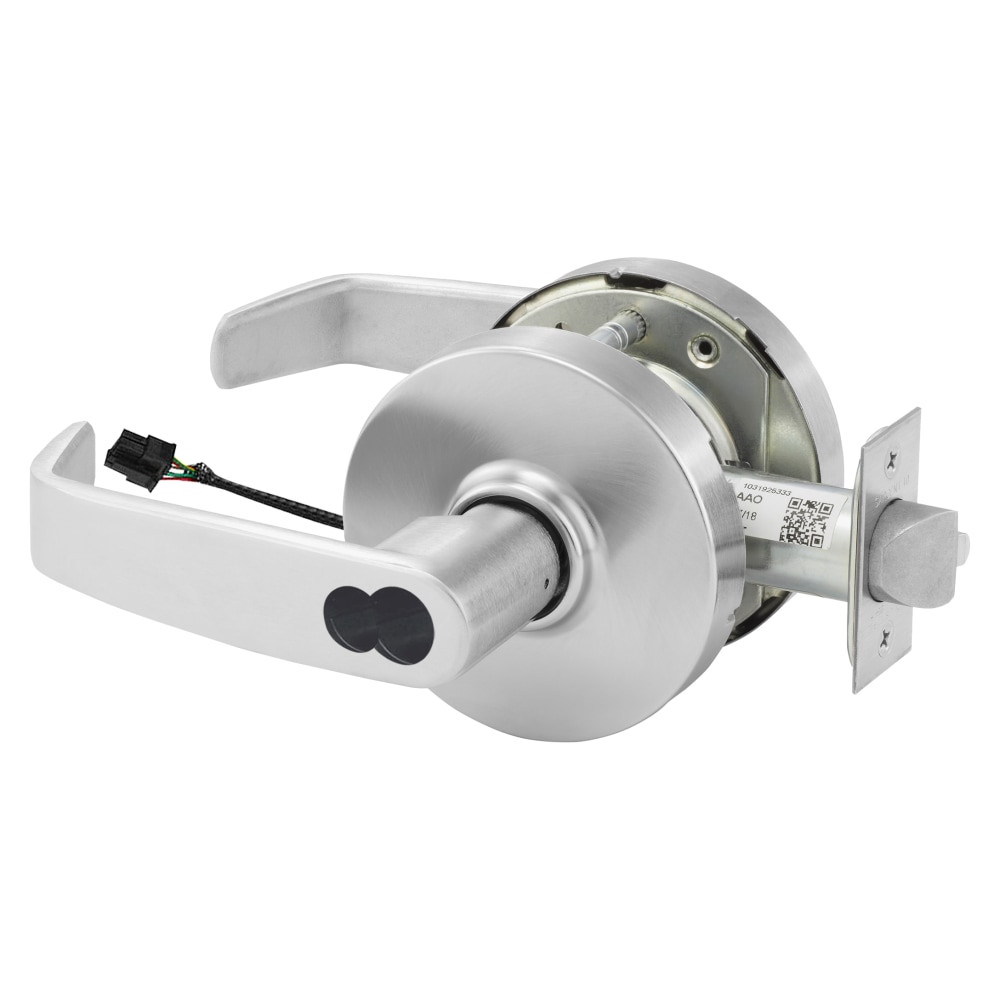

The Sargent RX2860-10G71-12V-LL-26D is a 10 Line cylindrical lock with Fail Secure function in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available. Grade 1 certified for heavy commercial use.
Prepped for a Sargent LFIC removable core (60- option): a disposable plastic construction core is provided and the permanent core is ordered separately.
| SKU Breakdown: RX2860-10G71-12V-LL-26D | |
| RX2860 | Request-to-exit switch (monitors inside lever) + ANSI curved lip strike (#808) + Sargent LFIC prep, ships with disposable plastic construction core |
| 10G71 | Series and Fail Secure function |
| 12V | Voltage: 12VDC, regulated |
| LL | Rose and lever: L rose, L lever |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RX2860-10G71-12V-LL-26D |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | LFIC prep (60-): plastic disposable construction core provided |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited (mechanical), 2-Year Limited (electronics) |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Secure function for commercial access control
- Satin Chrome (US26D/626) finish
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 7-year limited warranty on mechanical components of cylindrical locks and a 2-year limited warranty on electronic components, covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Fail Secure
Series 10
Finish Satin Chrome
Cylinder Interchangeable Core
Mount Type Cylindrical
Voltage 12VDC
Mode Fail Secure
