Product Description

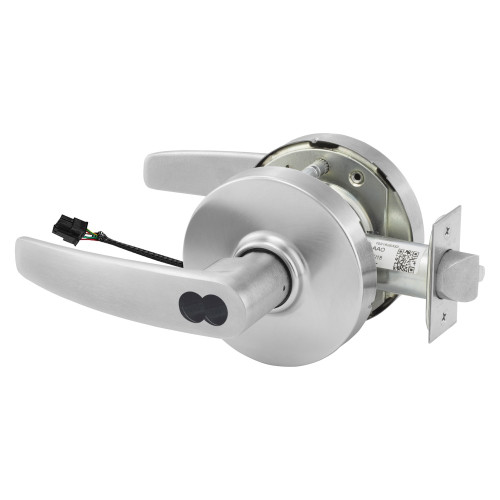

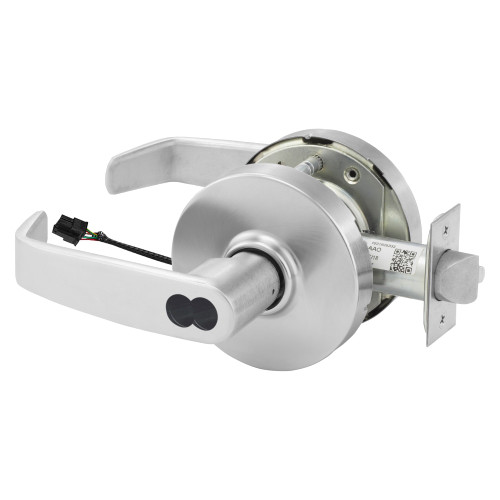

The Sargent RX2870-10G70-12V-LB-26D is a 10 Line cylindrical lock with Fail Safe function in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: RX2870-10G70-12V-LB-26D | |
| RX2870 | Backset/chassis configuration |
| 10G70 | Series and Fail Safe function |
| 12V | Lever/rose design: 12V |
| LB | Finish: Satin Chrome |
| 26D | Configuration modifier |
Pro-Tip from Our Locksmiths: Sargent cylindrical locks are a solid mid-range choice for commercial jobs where mortise prep isn't in the budget. Grade 1 certified with a clean, professional look.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RX2870-10G70-12V-LB-26D |
| Function | Fail Safe |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Safe function for commercial access control
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
