Product Description

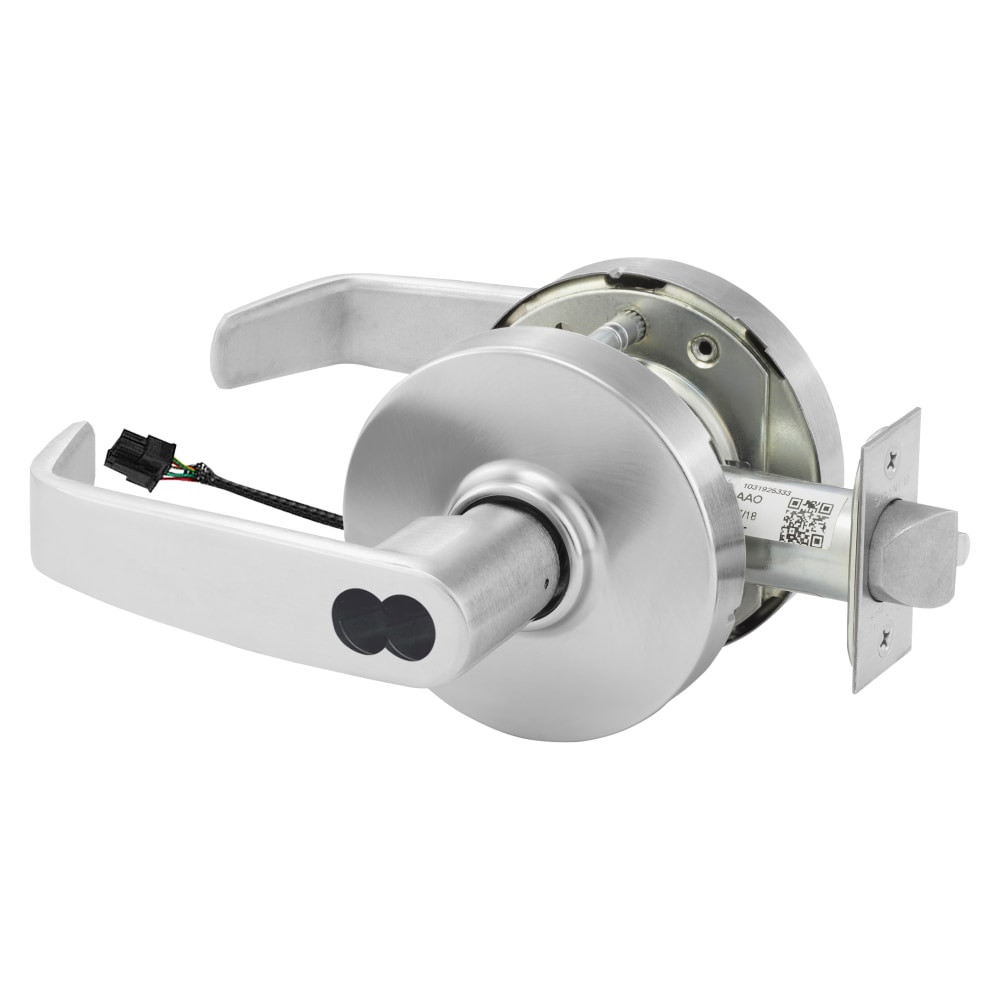

The Sargent RX2870-10G70-24V-LL-26D is a 10 Line cylindrical lock with Fail Safe function in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress. Grade 1 certified for heavy commercial use.
Prepped for a small format interchangeable core (70- option): a disposable plastic construction core is provided and the permanent SFIC core is ordered separately.
| SKU Breakdown: RX2870-10G70-24V-LL-26D | |
| RX2870 | Request-to-exit switch (monitors inside lever) + ANSI curved lip strike (#808) + SFIC prep, ships with disposable plastic construction core |
| 10G70 | Series and Fail Safe function |
| 24V | Voltage: 24VDC, regulated |
| LL | Rose and lever: L rose, L lever |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: The 10 Line is Sargent's workhorse cylindrical lock. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RX2870-10G70-24V-LL-26D |
| Function | Fail Safe |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | SFIC prep (70-): plastic disposable construction core provided |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Fail Safe function for commercial access control
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
