Product Description

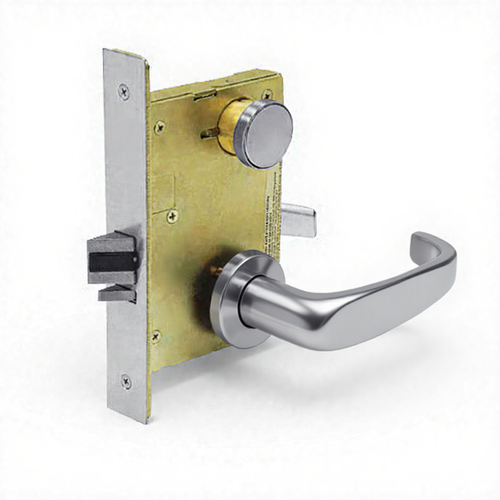

The Sargent RXLC-8271-24V-LNA-26D-RH is a 8200 Series Fail Secure mortise lock in Satin Chrome (US26D/626). Remains locked on power loss. Key override always available.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: RXLC-8271-24V-LNA-26D-RH | |
| RXLC | Less cylinder + request to exit or enter switch |
| 8271 | Series 8200, Fail Secure function |
| 24V | Voltage: 24V |
| LNA | Trim code: LNA |
| 26D | Finish: Satin Chrome |
| RH | Right Hand |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | RXLC-8271-24V-LNA-26D-RH |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited (mechanical), 2-Year Limited (electromechanical) |
- Fail Secure function — Remains locked on power loss. Key override always available.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Questions? Contact us for free expert support.

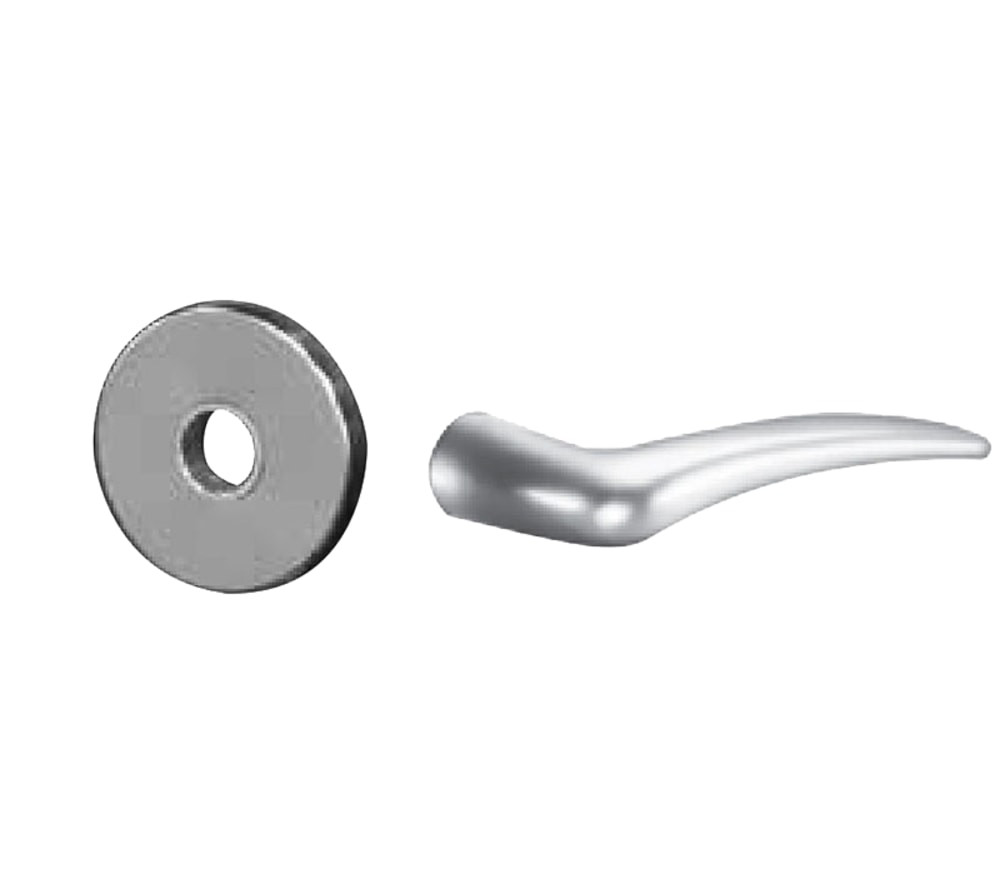

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
