Product Description
RXQEL98L-BE-07 4 26D RHR Von Duprin RX + QEL 98 Series Lever SFIC Prep Rim Exit Device Satin Chrome
The RXQEL98L-BE-07 4 26D RHR is a Von Duprin 98 Series rim exit device with L-07 Lever trim in Satin Chrome (US26D/626), sized for 4' doors. SFIC Prep — prepped for Small Format Interchangeable Core. Order SFIC housing and core separately to match your keyway. Prepped for SFIC — order SFIC housing and core separately to match your keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | RXQEL98L-BE-07 4 26D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | SFIC Prep |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Prepped for SFIC |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-07 Lever trim — pull operation from outside
- Satin Chrome finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration

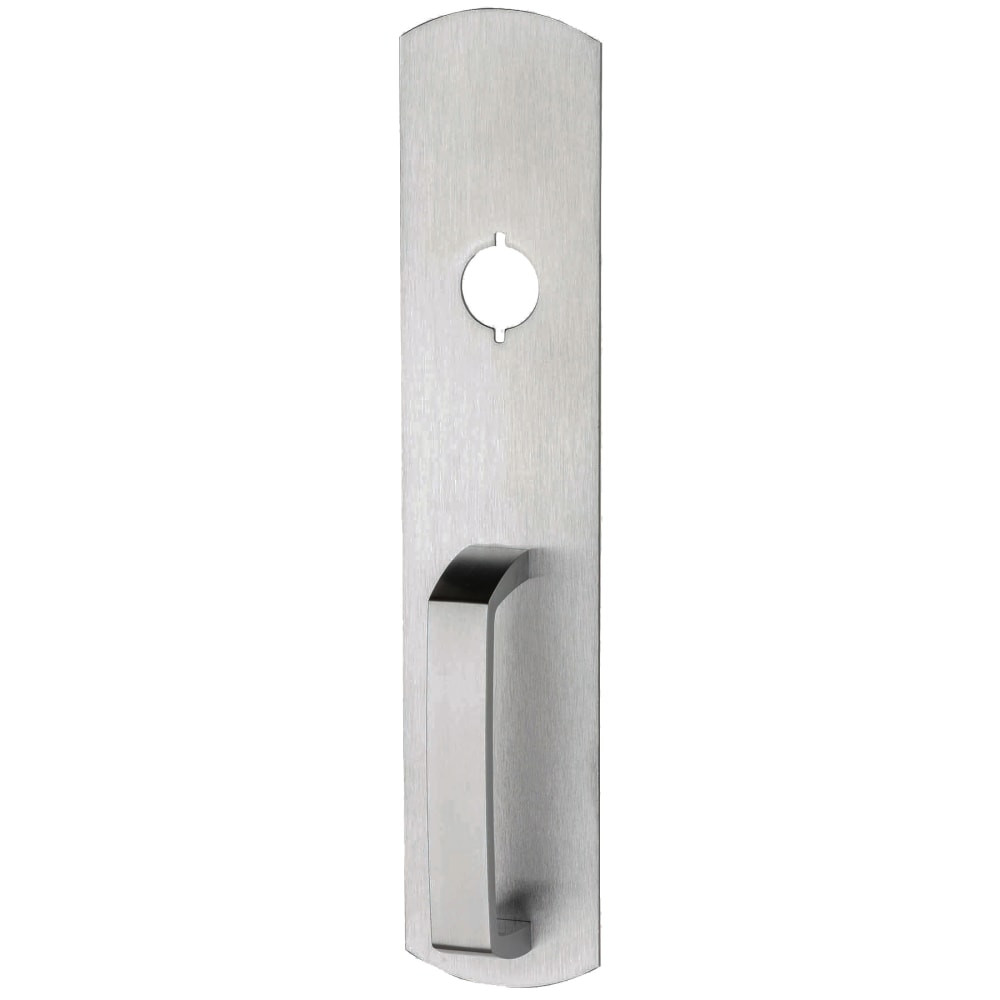

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
