Product Description

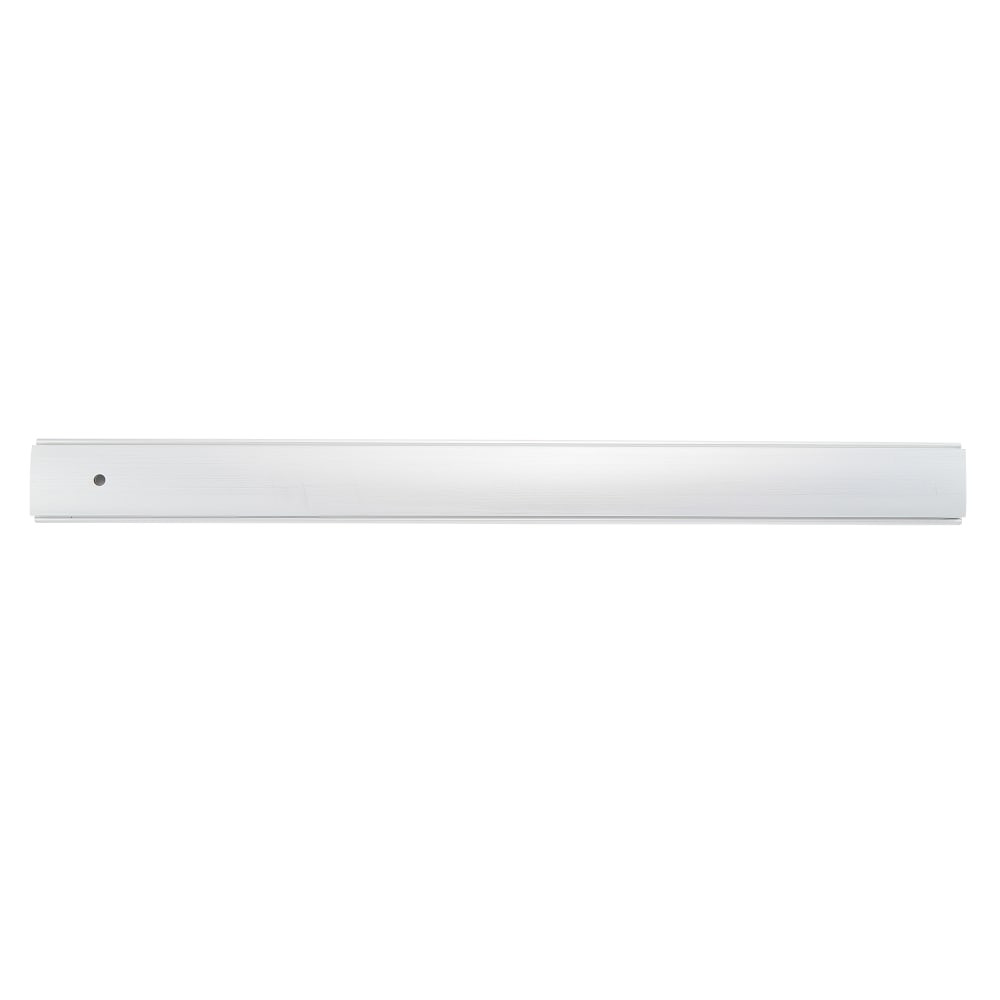

RXQEL98L-DT-03 4 US28 LHR Von Duprin RX + QEL 98 Series Lever Dummy Rim Exit Device Satin Aluminum
The RXQEL98L-DT-03 4 US28 LHR is a Von Duprin 98 Series rim exit device in Satin Aluminum (US28/628), sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | RXQEL98L-DT-03 4 US28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit + QEL |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Aluminum finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
