Product Description
RXQEL98TP-BE-F 4 313 Von Duprin Fire Rated RX + QEL 98 Series Thumbpiece SFIC Prep Rim Exit Device Dark Bronze
The RXQEL98TP-BE-F 4 313 is a Von Duprin 98 Series rim exit device in Dark Bronze (313/313), sized for 4' doors. SFIC Prep — prepped for Small Format Interchangeable Core. Order SFIC housing and core separately to match your keyway. Prepped for SFIC — order SFIC housing and core separately to match your keyway.
Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | RXQEL98TP-BE-F 4 313 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | SFIC Prep |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Dark Bronze (313/313) |
| Door Size | 4 Foot |
| Cylinder | Prepped for SFIC |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit + QEL |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Dark Bronze finish
- Request to Exit + QEL — Combines Request to Exit monitoring with Quiet Electric Latch Retraction for full access control integration
- Fire rated — UL listed for fire-rated openings, no mechanical dogging

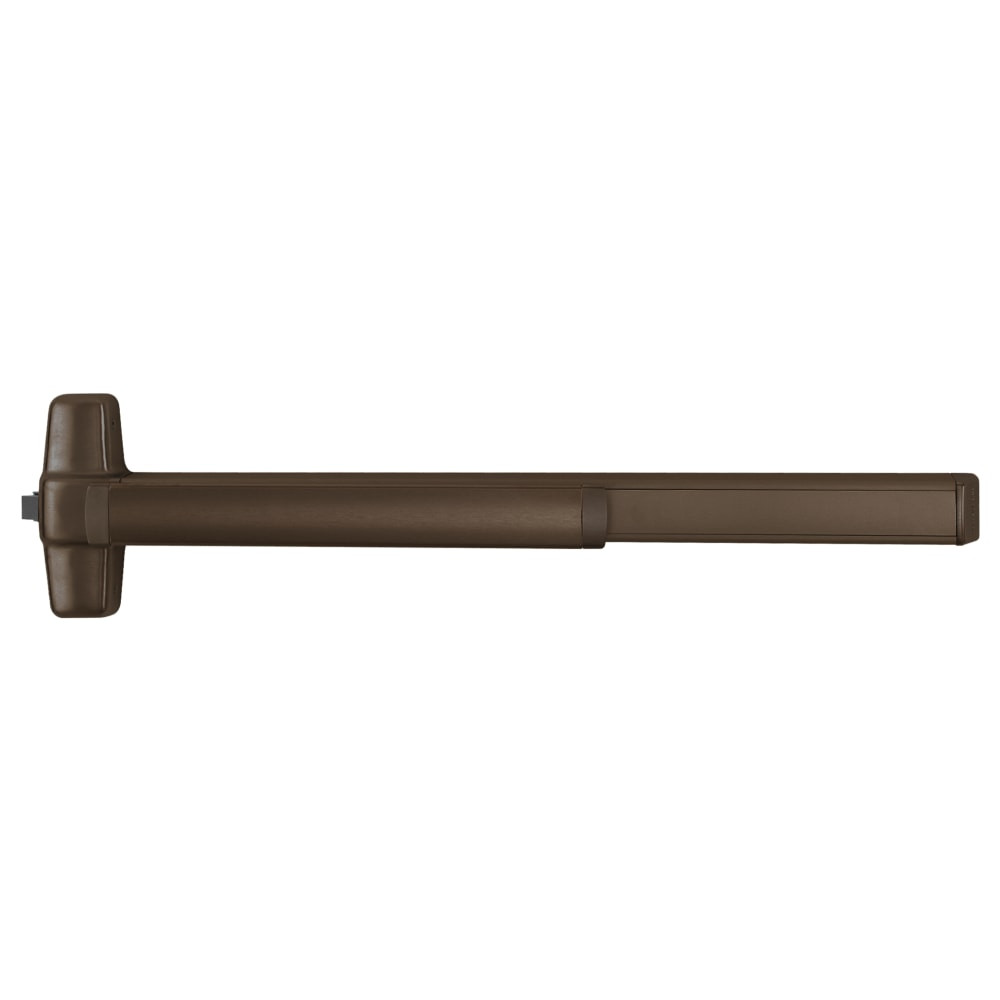

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
