Product Description
The Sargent V01-8205-LNL-26D is a 8200 Series Entry/Office mortise lock in Satin Chrome (US26D/626). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside.
Includes a standard conventional mortise cylinder (keyed). Need it without a cylinder? Order the LCV01- less-cylinder variant of this part instead.
| SKU Breakdown: V01-8205-LNL-26D | |
| V01 | Visual Indicator (thumbturn side) |
| 8205 | Series 8200, Entry/Office function |
| LNL | Trim code: LNL |
| 26D | Finish: Satin Chrome |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | V01-8205-LNL-26D |
| Series | Sargent 8200 |
| Function | Entry/Office |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Standard Conventional Cylinder (included) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Entry/Office function — Key locks and unlocks the outside lever. Inside lever is always free for exit.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

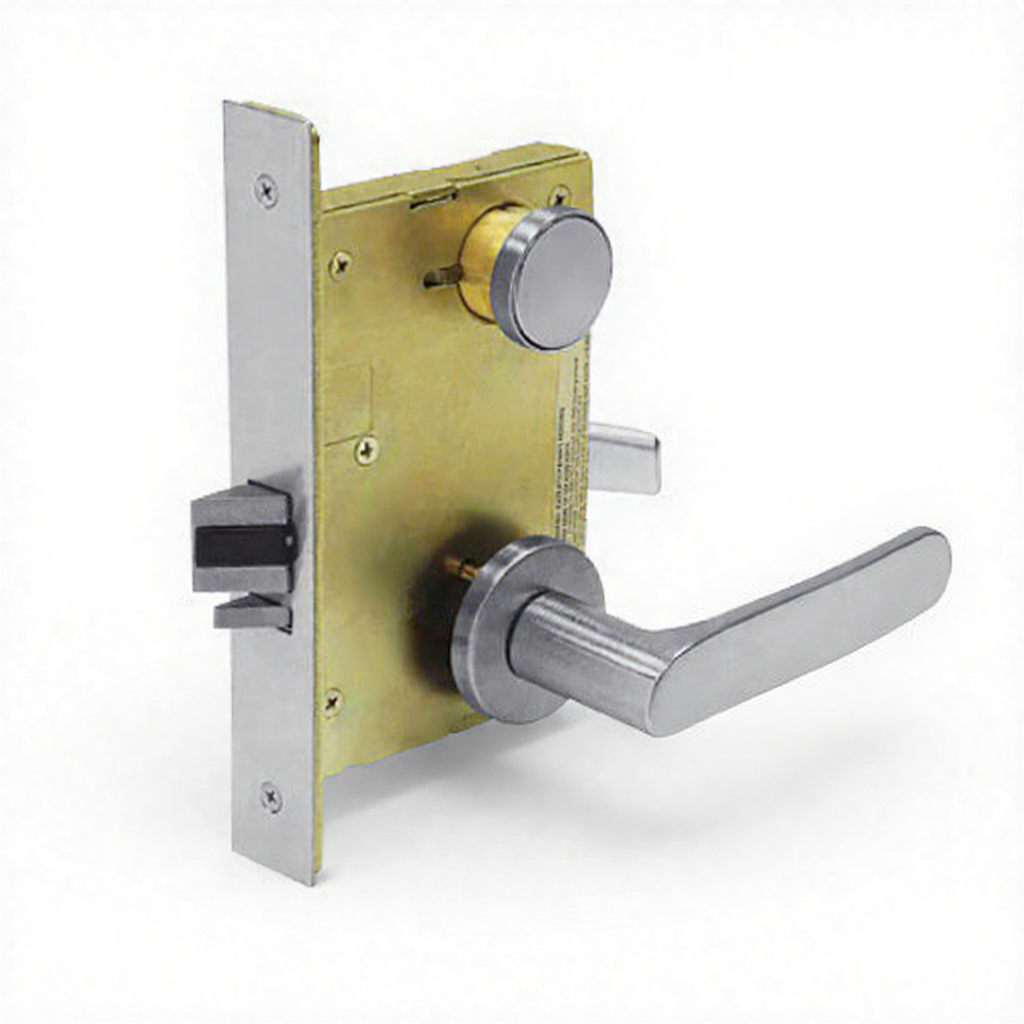

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Entry/Office
Finish Satin Chrome
Trim LN Rose, L Lever
Cylinder Standard Cylinder
Mount Type Mortise
Fire Rated Fire Rated
