Product Description

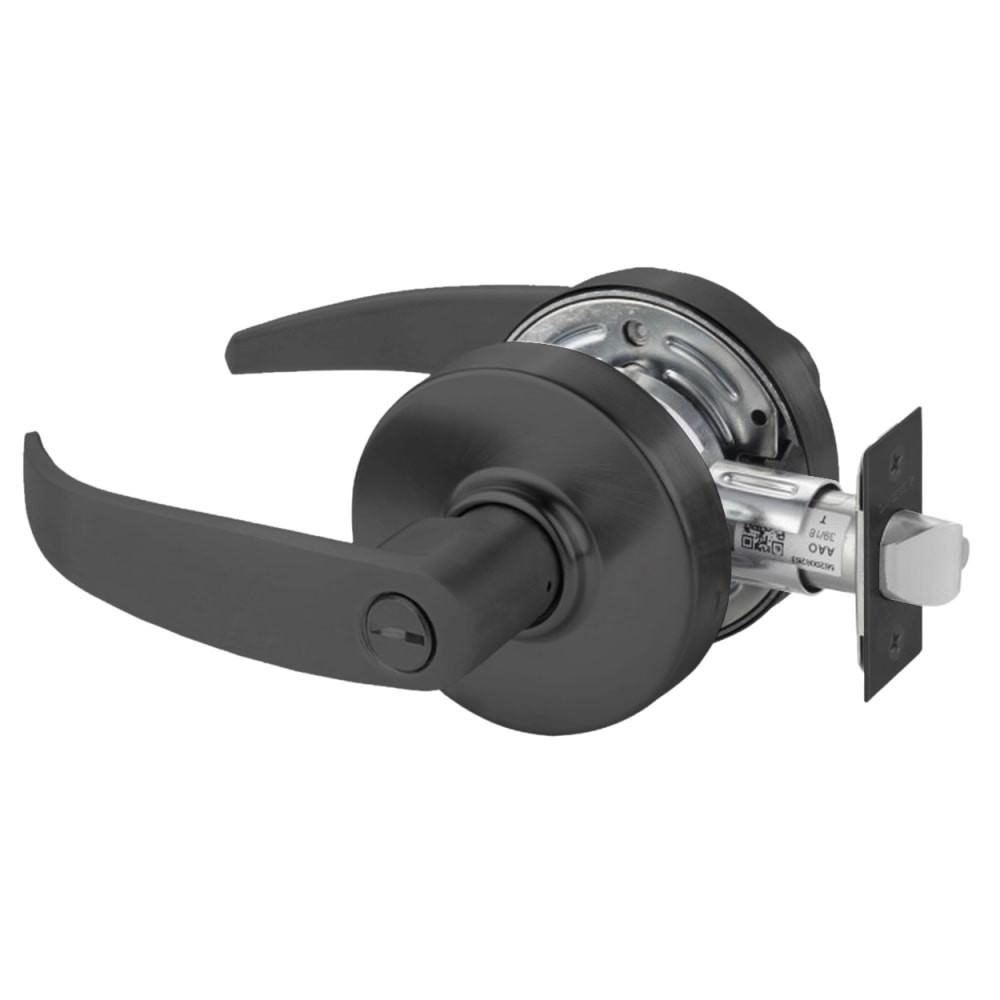

The Sargent 28-7U65-LP-BSP is a 7 Line cylindrical lock with Privacy function in Black Suede (BSP). Inside thumbturn locks the outside lever. Emergency key override from outside. Inside always free. Grade 2 certified for standard-duty commercial use.
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
| SKU Breakdown: 28-7U65-LP-BSP | |
| 28 | 808 ANSI strike |
| 7U65 | Series and Privacy function |
| LP | Lever/rose design: LP |
| BSP | Finish: Black Suede |
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-7U65-LP-BSP |
| Function | Privacy |
| Finish | Black Suede (BSP) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Privacy function for commercial access control
- Black Suede (BSP) finish
Works With: Compatible with Sargent conventional cylinders.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 5-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Privacy
Series 7
Finish Black Suede
Trim P Lever
Cylinder Standard Cylinder
Mount Type Cylindrical
