Product Description

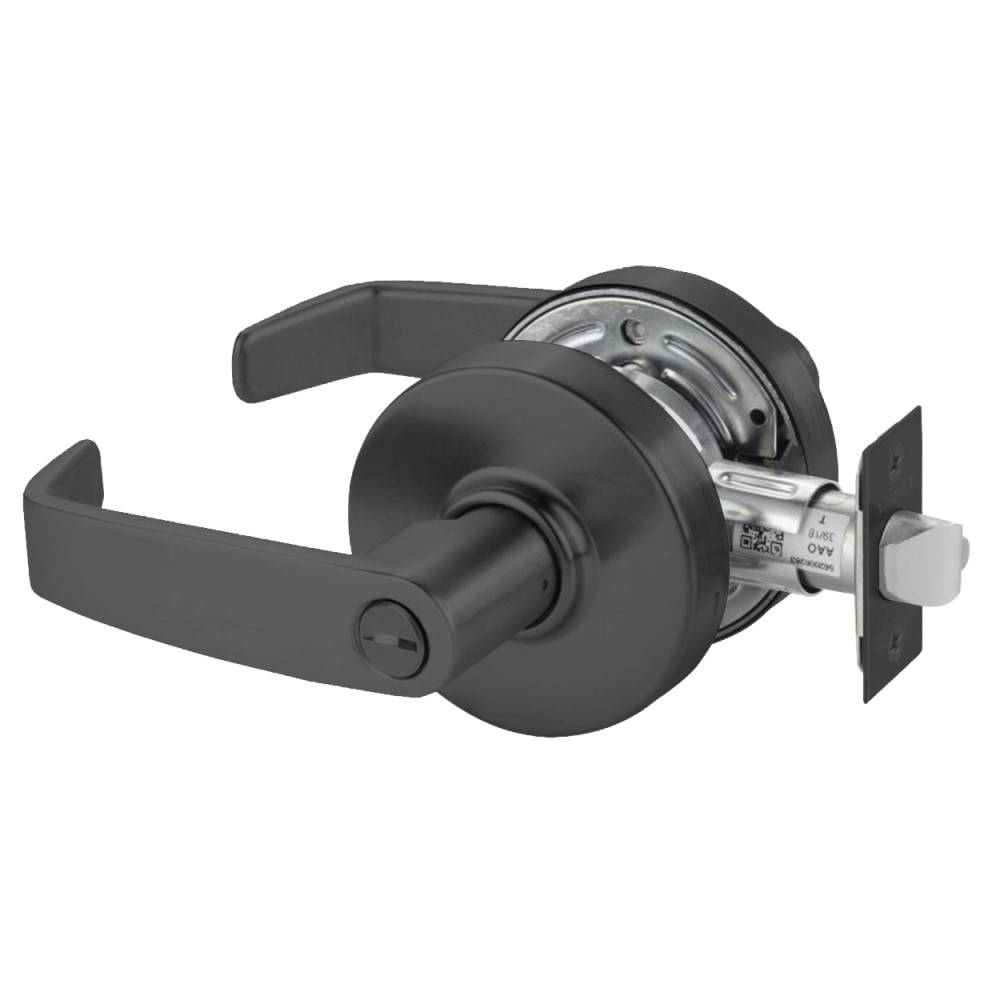

The Sargent 28-7U65-LL-BSP is a 7 Line cylindrical lock with Privacy function in Black Suede (BSP). Inside thumbturn locks the outside lever. Emergency key override from outside. Inside always free. Grade 2 certified for standard-duty commercial use.
Ships with a Sargent 6-pin conventional cylinder (LA keyway standard) and two keys.
| SKU Breakdown: 28-7U65-LL-BSP | |
| 28 | 808 ANSI strike |
| 7U65 | Series and Privacy function |
| LL | Lever/rose design: LL |
| BSP | Finish: Black Suede |
Pro-Tip from Our Locksmiths: The 7 Line is Sargent's Grade 2 cylindrical lock, tested to 2-1/2 times the Grade 2 cycle requirement. It suits standard-duty offices and interior doors without mortise lock pricing.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-7U65-LL-BSP |
| Function | Privacy |
| Finish | Black Suede (BSP) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 2 |
| Warranty | 5-Year Limited |
- ANSI/BHMA A156.2 Series 4000, Grade 2 cylindrical lock — standard commercial duty
- Privacy function for commercial access control
- Black Suede (BSP) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
