Product Description

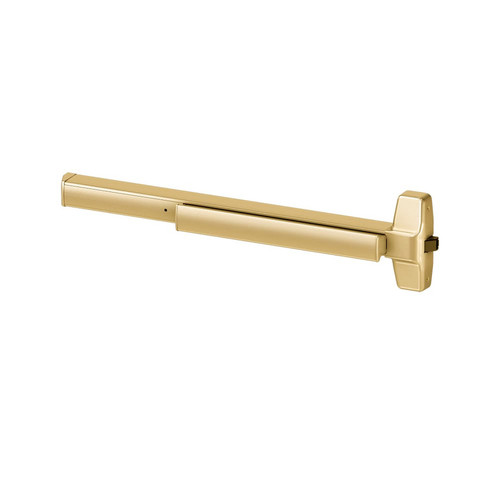

78NL-US3-4 Von Duprin 78 Series with 990NL Night Latch Rim Exit Device in Bright Brass
The Von Duprin 78NL-US3-4 is a crossbar rim exit device for storefront and aluminum doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 78 Series crossbar provides a wide activation zone across the full width of the door — maximum push area for emergency egress. Available in 4-foot width. Non-handed design works for both LHR and RHR door swings. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The 78 crossbar is non-handed — same device works for LHR and RHR swings. That's a major advantage over the 55 Series narrow stile which is factory-handed. If you're not sure about handing at order time, the 78 takes the guesswork out.
| Specifications | |
|---|---|
| Part Number | 78NL-US3-4 |
| Function | NL - Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Crossbar design — wide activation zone across full door width
- Non-handed — same device fits LHR and RHR door swings
- Hex key dogging standard — holds latch retracted during business hours
- Bright Brass (US3/605) finish
Works With: For pairs of doors, see the 7827 Surface Vertical Rod or 7847 Concealed Vertical Rod. For narrow stile doors, see the 55 Series.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
