ALX40-SAT-605 Schlage ALX Series Cylindrical Lever Lock — Bath/Bedroom Privacy Lock, Saturn Lever, Bright Brass

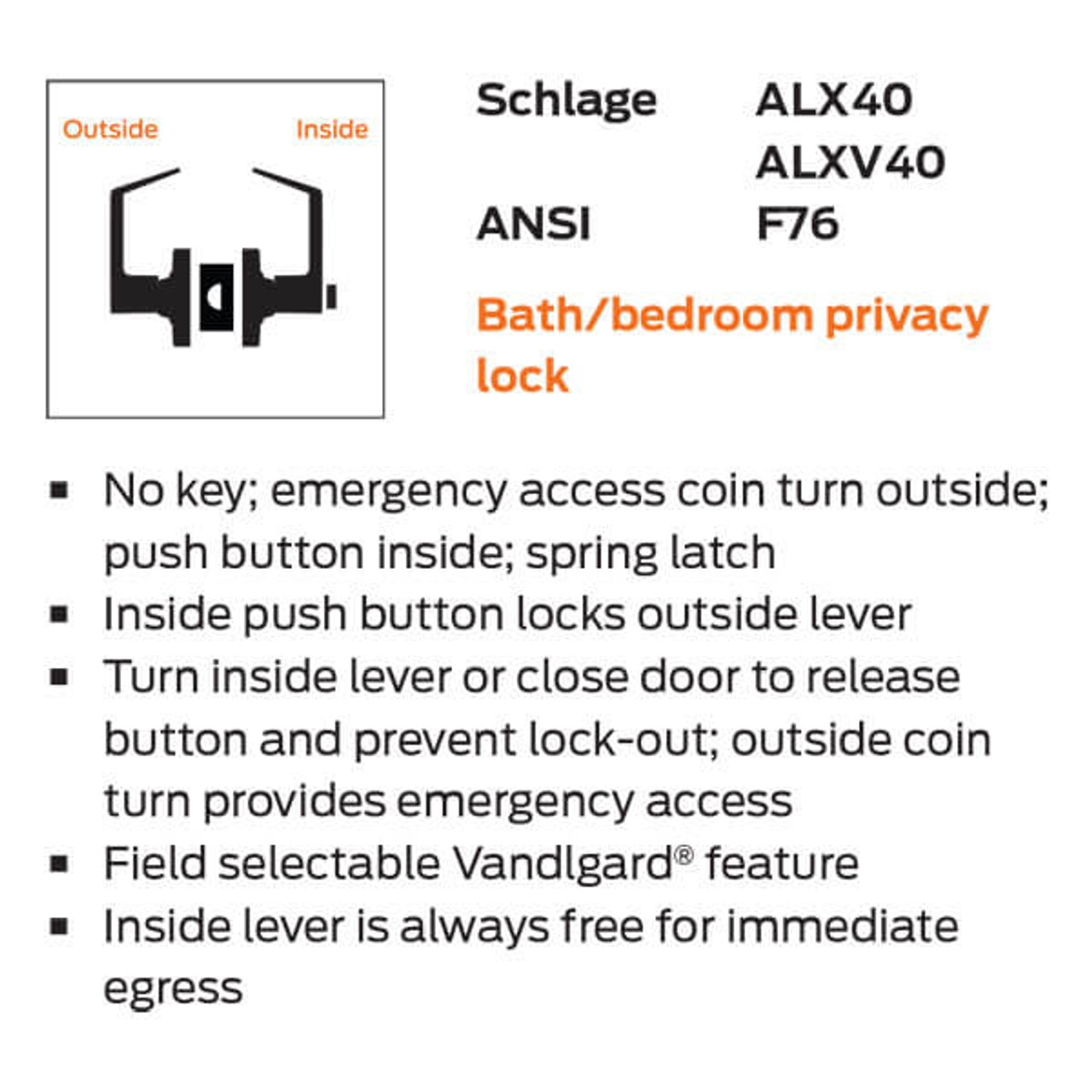

A bathroom door has two jobs. It has to lock from inside with one push, and somebody in the hall has to be able to get in if the person inside is in trouble. The ALX40 does both. Push the button in the inside lever and the outside lever goes dead. Turn the inside lever or close the door and the button lets go, so nobody gets locked out by accident. From the hall, the slot in the outside lever is the way in.
This one is the Saturn lever on the Rhodes rose, in Bright Brass. The latch is a spring latch. Want the outside lever to spin free when locked? Schlage sells that as Vandlgard, catalog number ALXV40. Pick your backset in the dropdown: 2-3/4" is standard, 2-3/8" is the other choice. Measure from the door edge to the center of the bore before you order.
SKU Breakdown
| Segment | Code | What It Means |
|---|---|---|
| Series | ALX | Schlage ALX Series, a Grade 2 cylindrical lever lock |
| Function | 40 | Bath/Bedroom Privacy Lock: push button inside locks the outside lever; emergency slot outside |
| Lever | SAT | Saturn lever on the Rhodes rose |
| Finish | 605 | Bright Brass (US3) |
Technical Specifications
| Specification | Value |
|---|---|
| SKU | ALX40-SAT-605 |
| Series | Schlage ALX Series |
| Function | Bath/Bedroom Privacy Lock, ANSI F76 |
| Lock grade | ANSI/BHMA A156.2 Grade 2, Series 4000 |
| Lever | Saturn, Grade 2. 4-7/16" wide, 2-15/16" projection, pressure cast zinc |
| Rose | Rhodes, 3-7/16" diameter, wrought |
| Backset | 2-3/4" standard, 2-3/8" by the dropdown on this page |
| Door thickness | 1-3/8" through 1-3/4" |
| Latch | Spring latch, stainless steel bolt, 1/2" throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ANSI curved lip, 1-1/4" x 4-7/8", 1-3/16" lip, no dust box |
| Handing | Non-handed |
| Chassis | Steel, zinc dichromated |
| Finish | 605 / US3 Bright Brass |
| Warranty | 10-year limited |
Compliance & Codes
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2. ANSI function F76. UL and cUL listed for A label fire doors: single door 4' x 8' or 4' x 10', 3-hour; pair of doors 8' x 8', 3-hour, or 8' x 10', 90-minute. The letter F and the UL symbol on the latch front show the listing. Complies with ICC A117.1. Schlage states all ALX lever designs meet ADA requirements. Meets FF-H-106C Series 161.
What's in the Box
One complete lock: Saturn levers and Rhodes roses, chassis, spring latch and ANSI strike. No cylinder and no key on this function.
Pro-Installer FAQ
Q: How do I open it from the hall in an emergency?
A: Put the emergency key or a small flat screwdriver in the slot in the outside lever and turn it. That releases the button. The emergency key is sold separately, Schlage part number 35-270.
Q: Can someone get locked out if the door shuts with the button pushed?
A: No. Closing the door releases the button and unlocks the outside lever. Turning the inside lever does the same.
Q: Is this a Grade 1 lock?
A: No. Schlage certifies the ALX Series as Grade 2 and rates the Saturn lever Grade 2 as well. If the job calls for Grade 1, step up to the Schlage ND Series.
